SANC-PA-UF pneumatic valve (large caliber)
SANC-PA-UF pneumatic valve (large caliber)
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout

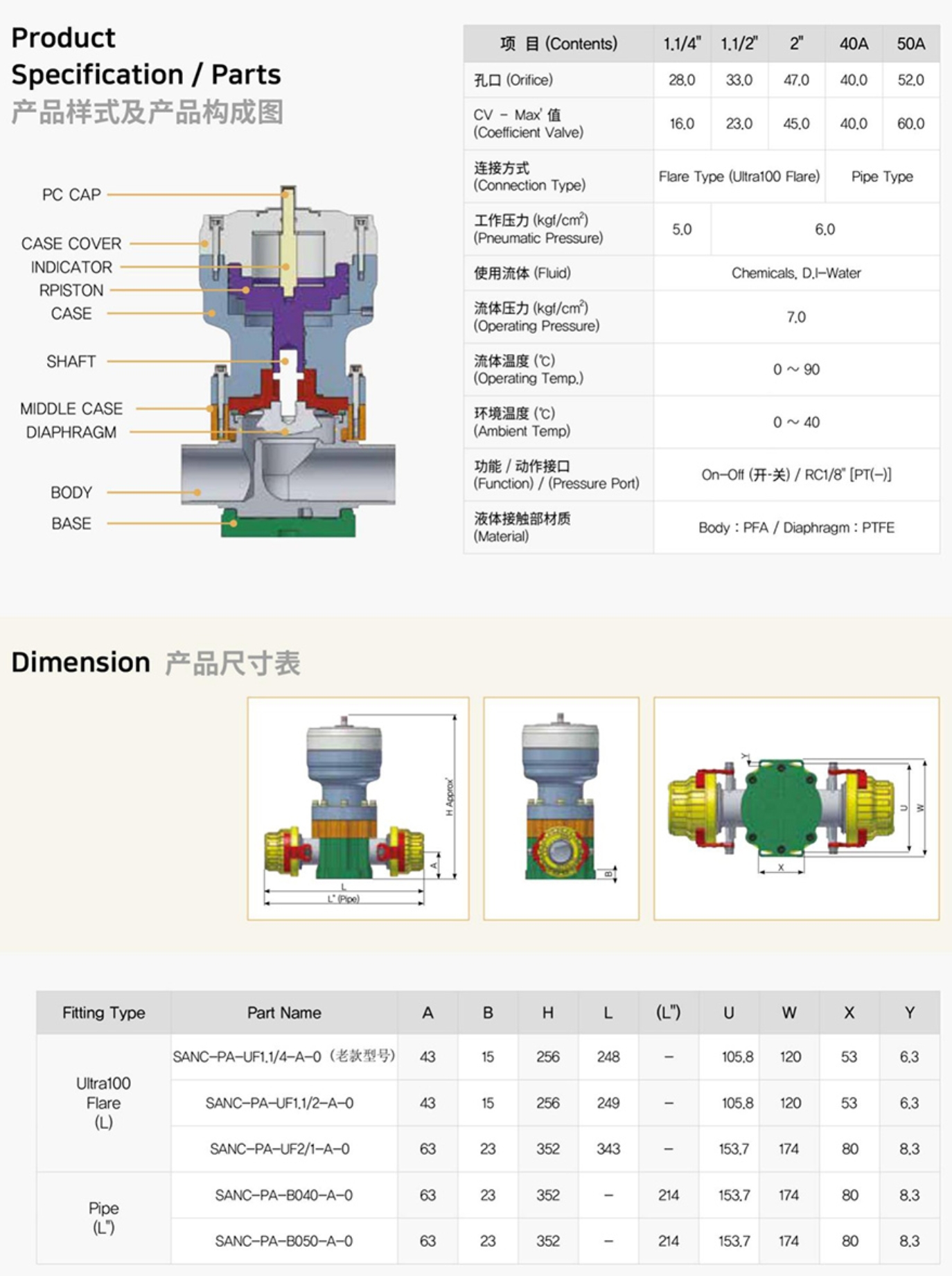

Auto Valve Standard size Product Details
| Contents | 1.1/4” |
| Orifice | 28.0 |
| Coefficient Valve | 16.0 |
| Connection Type | Flare Type(MF Flare) |
| Pneumatic Pressure | 5.0 |
| Fluid | Chemicals,D.I-Water |
| Operating Pressure | 7.0 |
| Operating Temp | 0~90 |
| Ambient Temp | 0~40 |
| Function/OperatingType | On-Off/RC1/8”[PT(-)] |
| Material | Body:PFA/Diaphragm:PTFE |

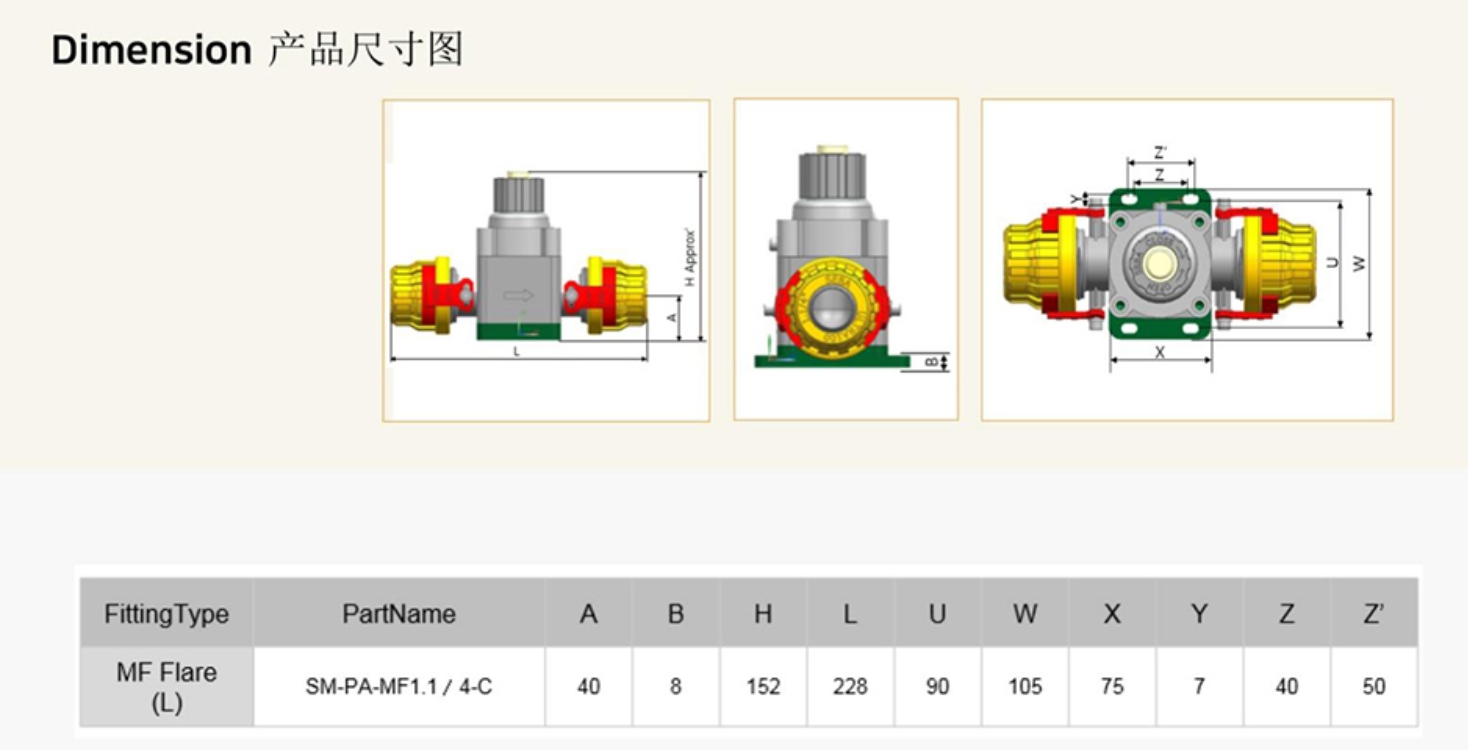

Manual Valve Product Details
| Contents | 1.1/4” |
| Orifice | 28.0 |
| Coefficient Valve | 16.0 |
| Connection Type | Flare Type(MF Flare) |
| Pneumatic Pressure | 5.0 |
| Fluid | Chemicals,D.I-Water |
| Operating Pressure | 7.0 |
| Operating Temp | 0~90 |
| Ambient Temp | 0~40 |
| Function/OperatingType | On-Off/Manual |
| Material | Body:PFA/Diaphragm:PTFE |
Auto Valve Big size Product Details
