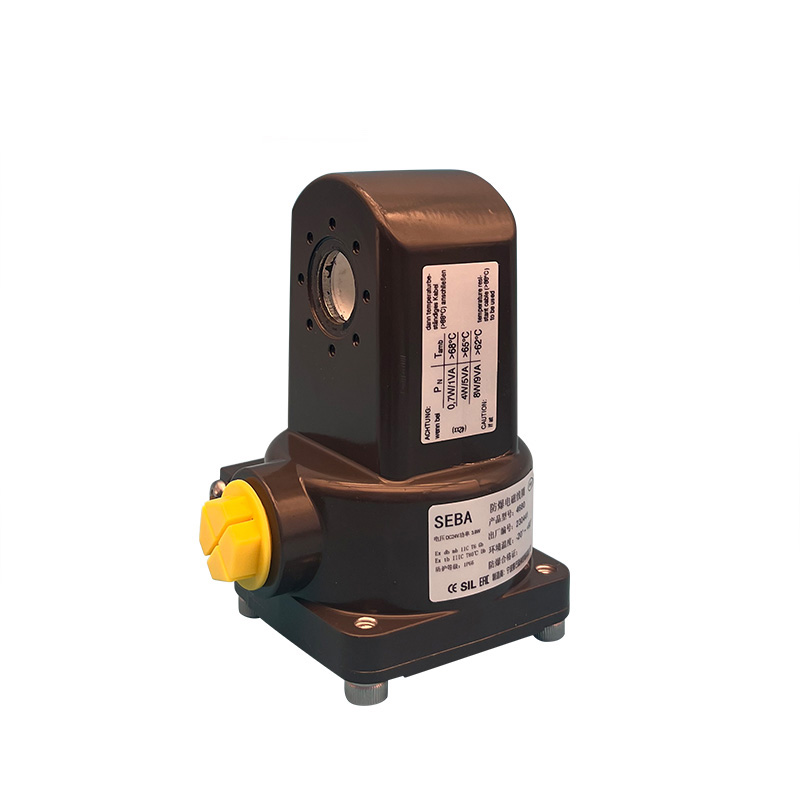

46 series
Protection level EEx dmbIICT4/T5/6 and EEx mellT4/T5/T6
ATEX Category II2GD
Suitable for zones 1 and 2 (gas) and zones 21 and 22 (dust)
Valve power consumption from 07 to 12 watts for 2/2-.3/2-5/2- and 5/3 functions
Resistant to chemicals and corrosion
Coil body: Anodized aluminum
Suitable for outdoor installation
Corresponds to high and low ambient temperatures
Easy to install
Compact design
Junction box without screw clamping, wiring 0 to 2.5mm
Protection class EExdmb or depending on cable gland (ATEX certification) class EEx d or EExe

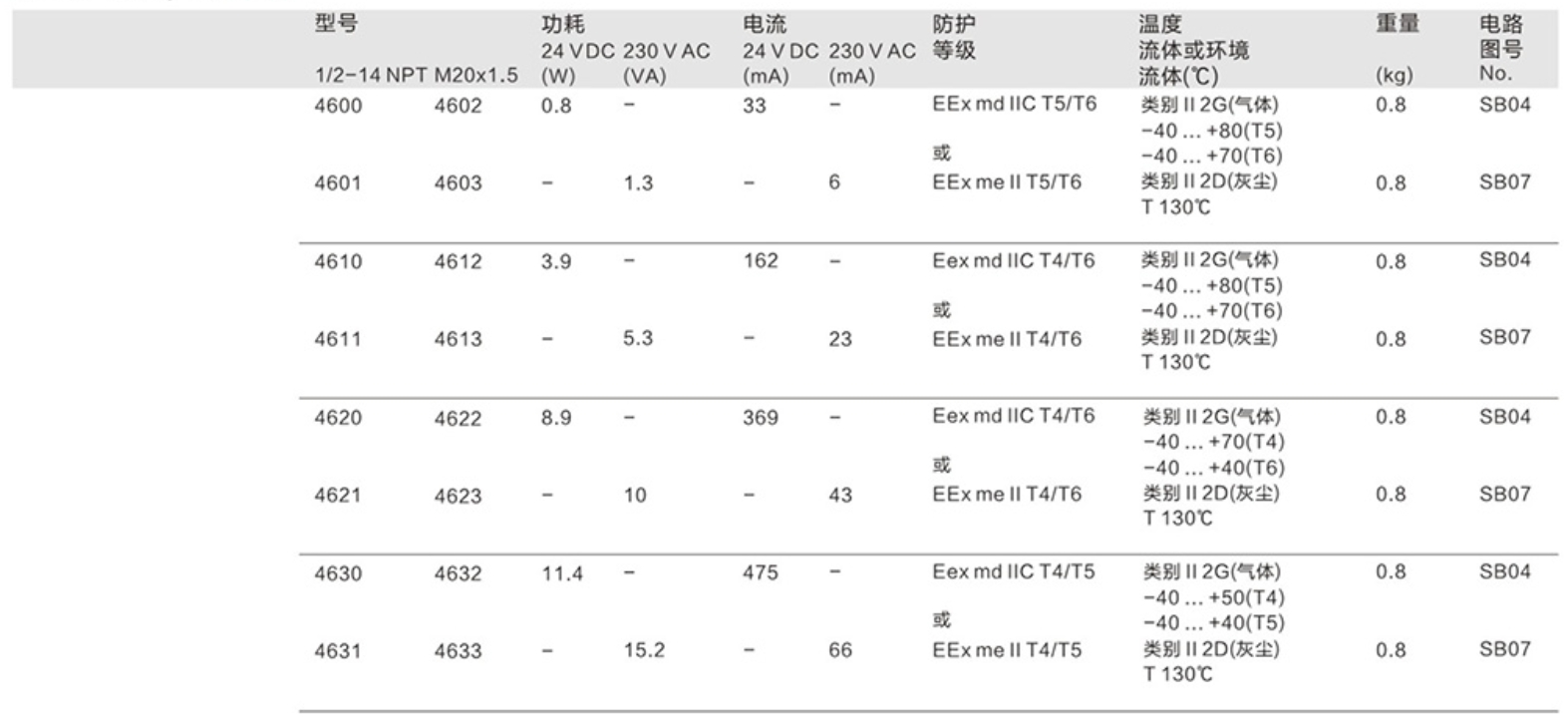

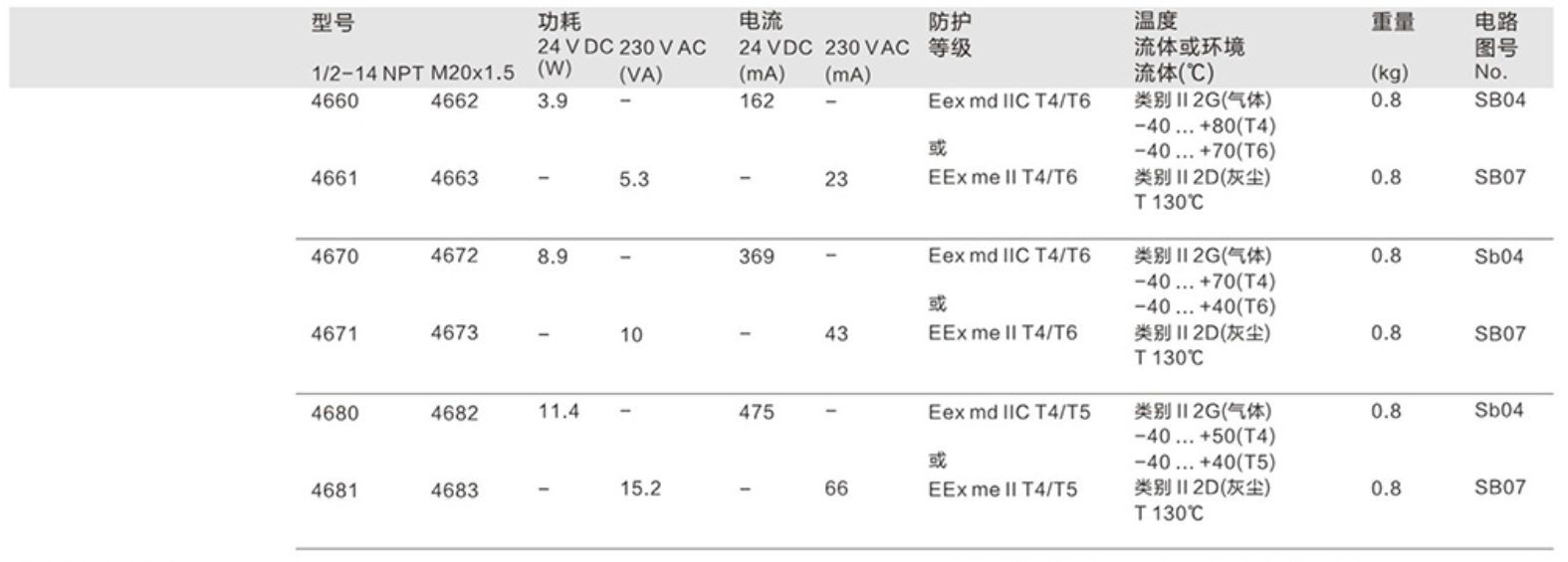

| EC-type certification testing: PTB 02ATEX2085X Working period: 100% duty cycle Fuse: integrated Operating temperature: Minimum:-40C Maximum: See table on next page Air humidity: maximum 95% Coil insulation: Thermal class H Standard Voltage: DC24V UC24V AC110V,230V(40-60Hz) Other voltages available upon request Protection level (EN60529): IP66 Weight: 800g |
Selection example The protection level is EExmdIICT4/T6 Voltage 24V DC Power consumption 3.9 watts Casing diameter 13mm, with integrated fuse Model:0000000.4610.024.00 Eexd wire connector 1/2-14NPT Model:0588925 |
| Casing diameter 13mm |
 |
| Casing diameter 16mm |
 |
|

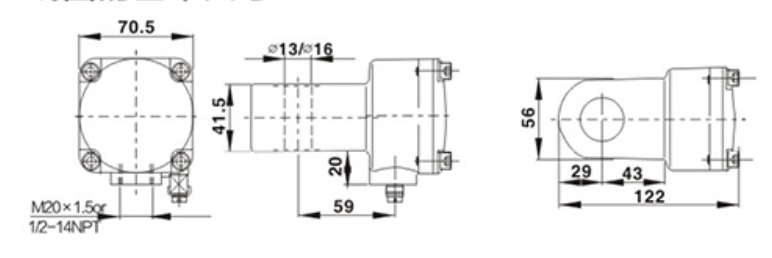

Basic dimensions of the coil
|

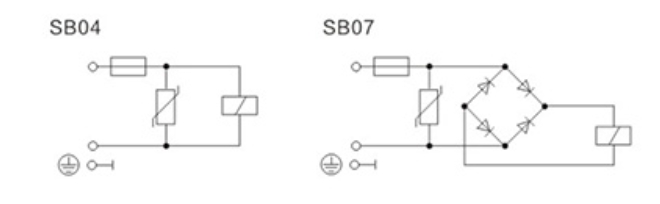

Circuit diagram
|
