Pilot operated solenoid valve, Namur series

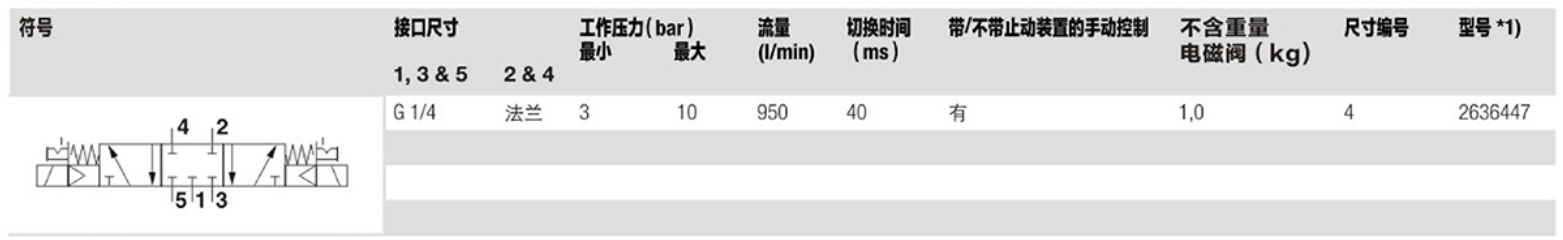

2636080207,3/2,5/2 & 5/3
· Port size: G1/4 and NAMUR interface
· Suitable for single-acting and double-acting actuators
· Maintenance free
· All valves are available with explosion-proof protection coils
· Standard manual emergency control with brake
· Simple design of soft seal slide valve system
· Easy to interchange solenoids
Technical features
medium:
Filtered, lubricated or non-lubricated compressed air
operate:
Indirect solenoid operated T-spool valve
Work pressure:
Maximum 10bar (145psi)
Port size:
G1/4
Flow direction:
stable
Fixed installation:
Optional, preferably with a solenoid on top
Ambient/medium temperature:
-20°...+60C(-40...140F)
Depending on the solenoid valve system, the air supply must be sufficiently dry
To avoid freezing when the temperature is below +2C (+35F).
Material:
Housing: Anodized aluminum
Guide flange: plastic (POM)
Seal: NBR

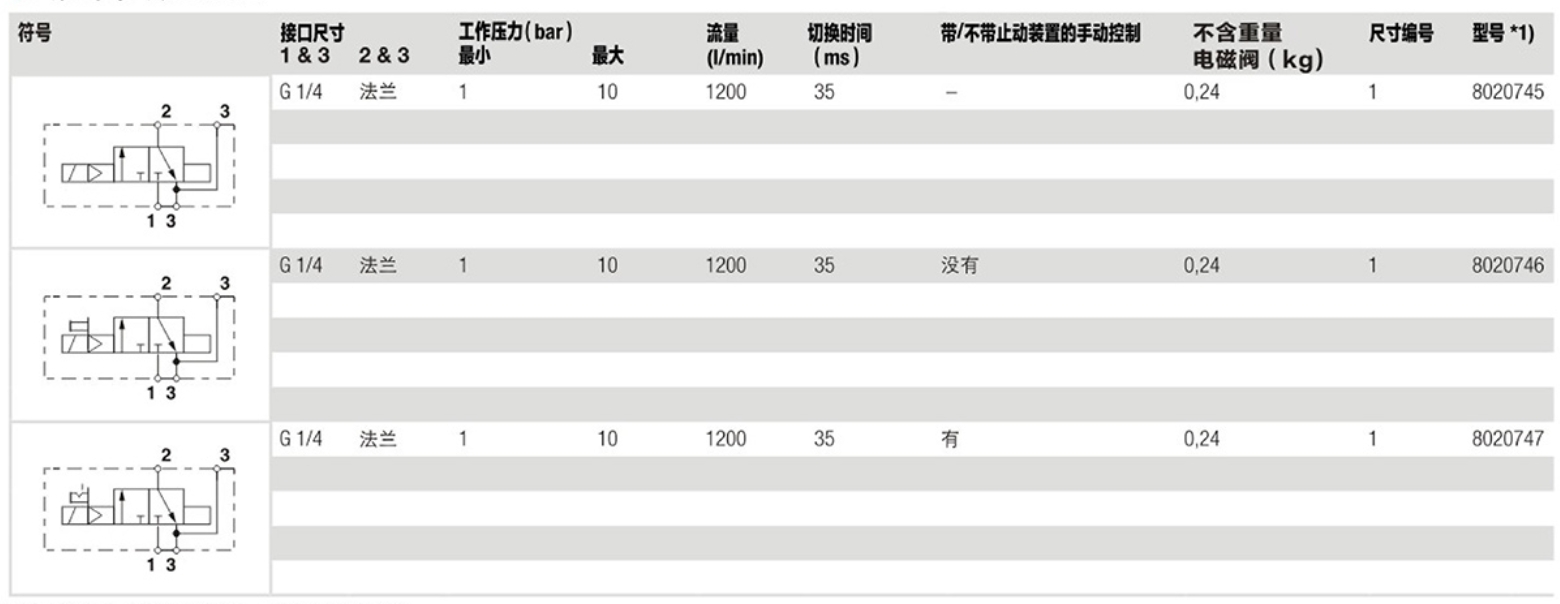

| 3/2 pass |
 |

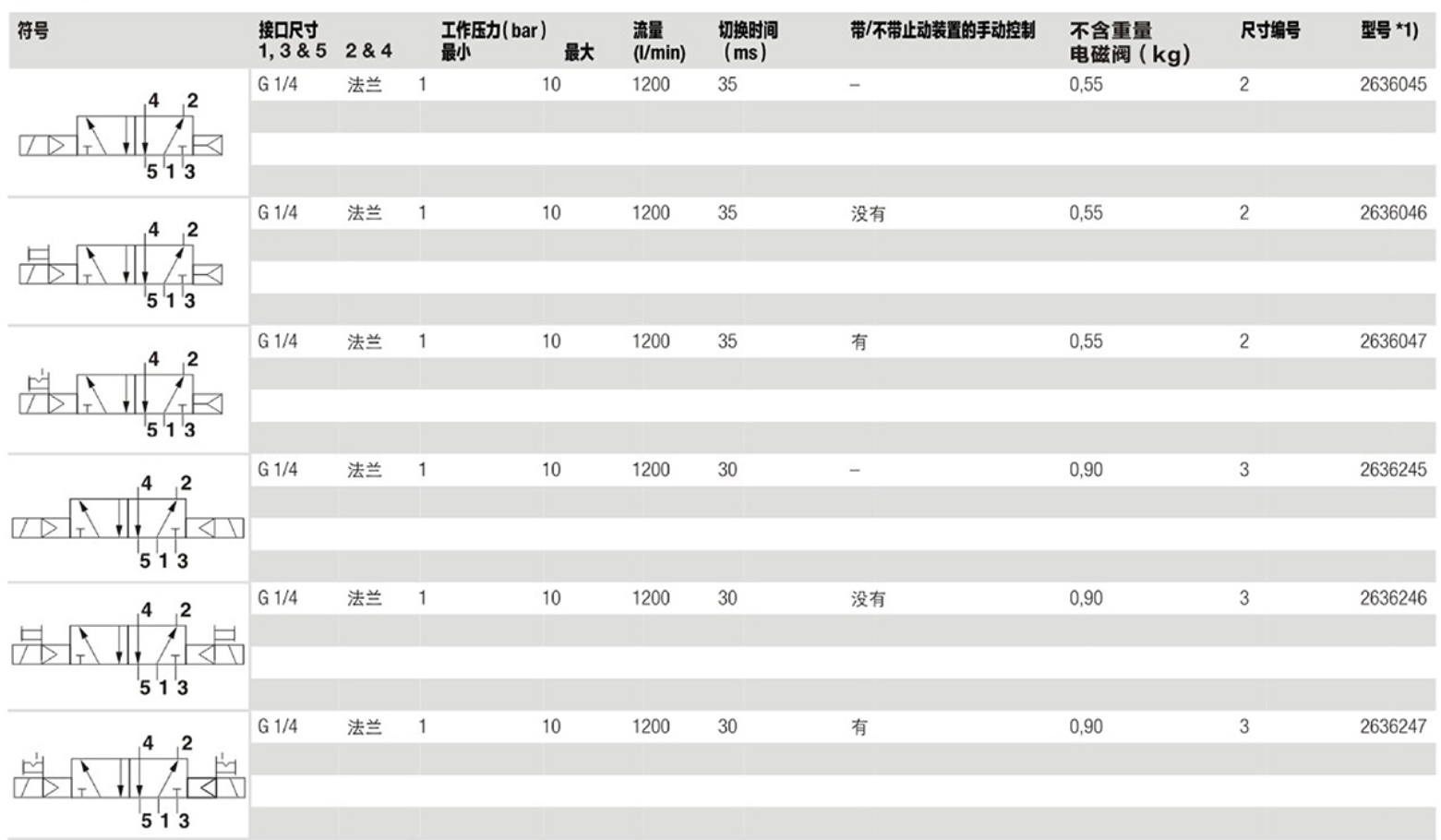

| 5/2 pass |
  |

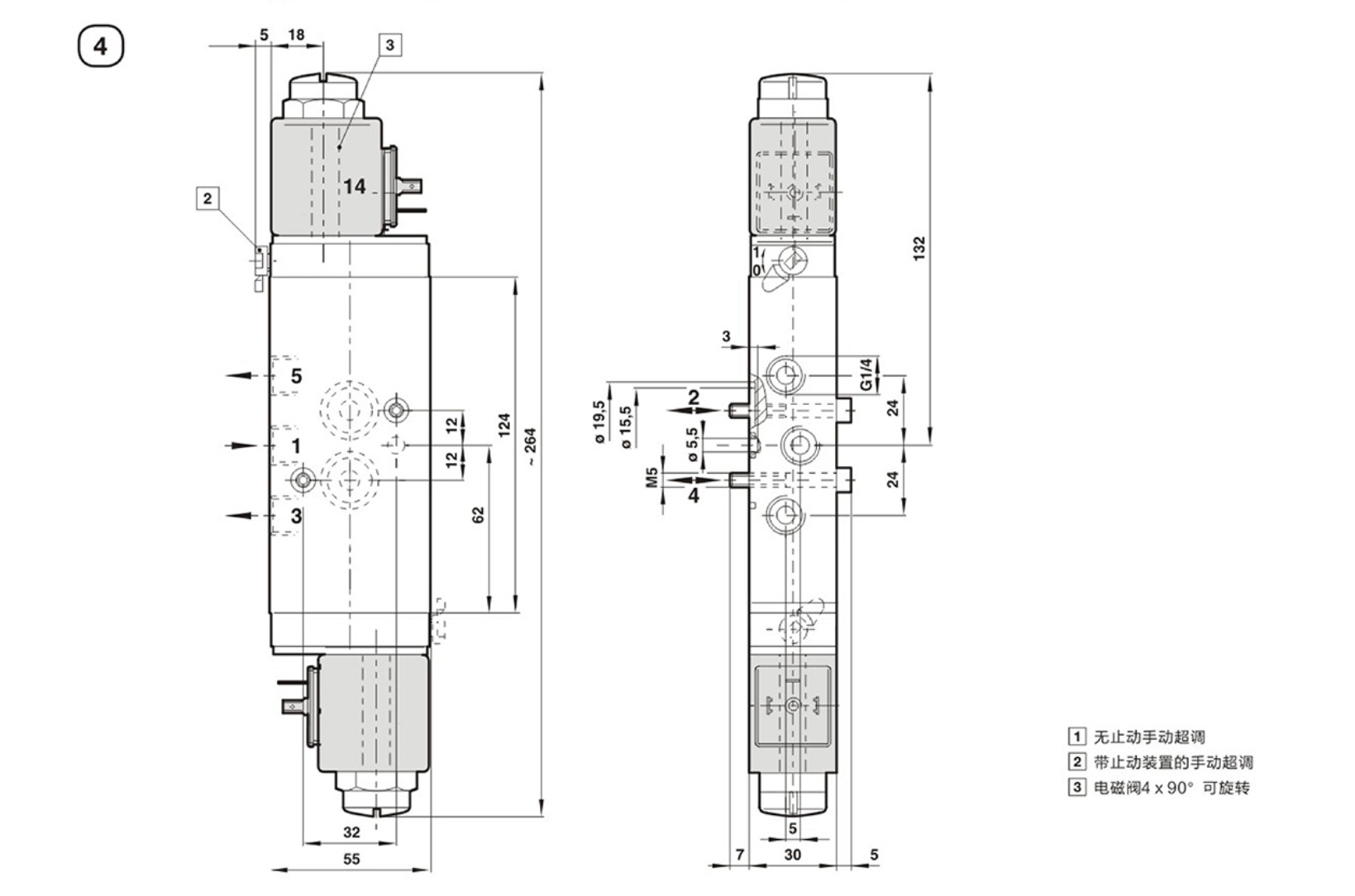

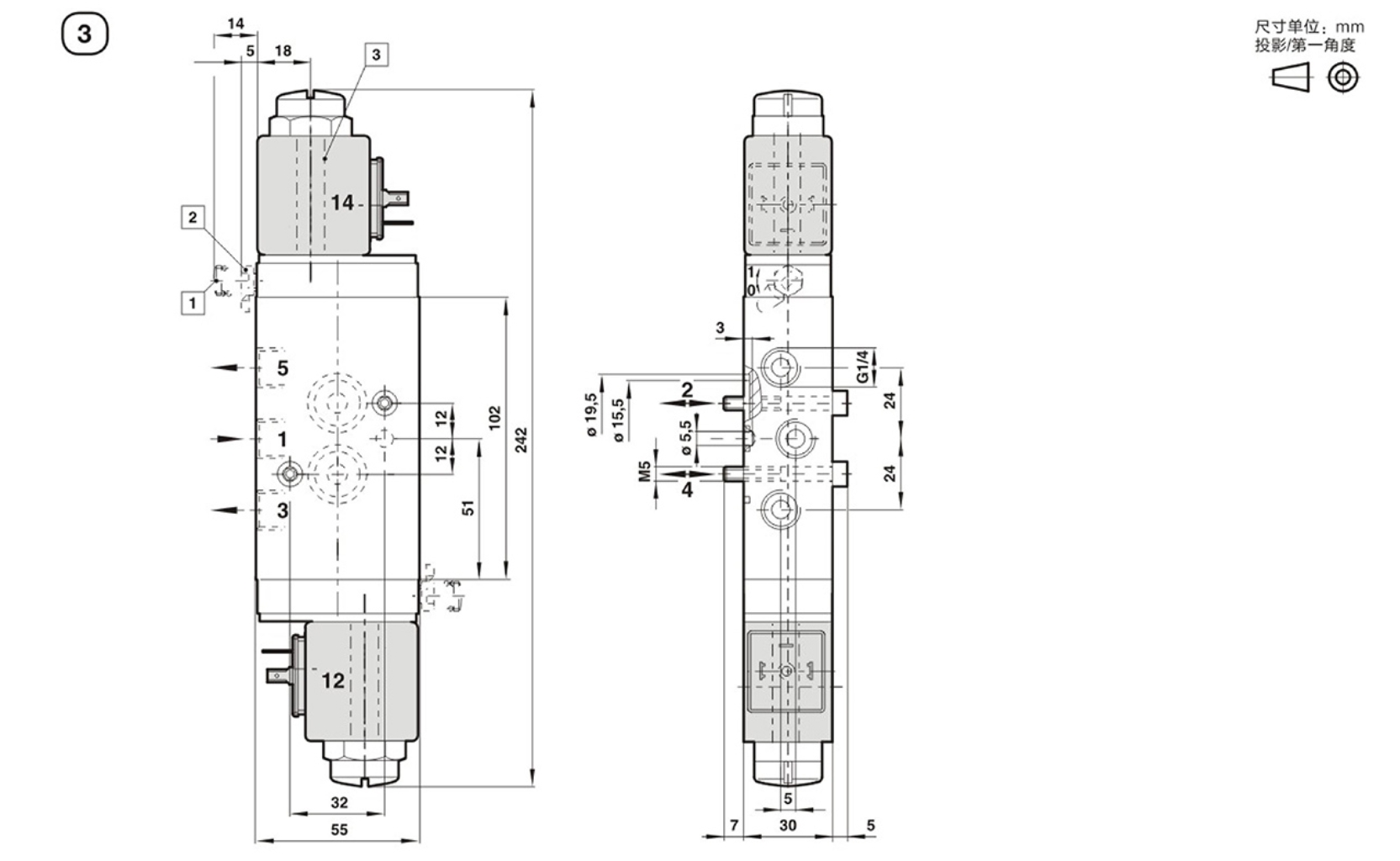

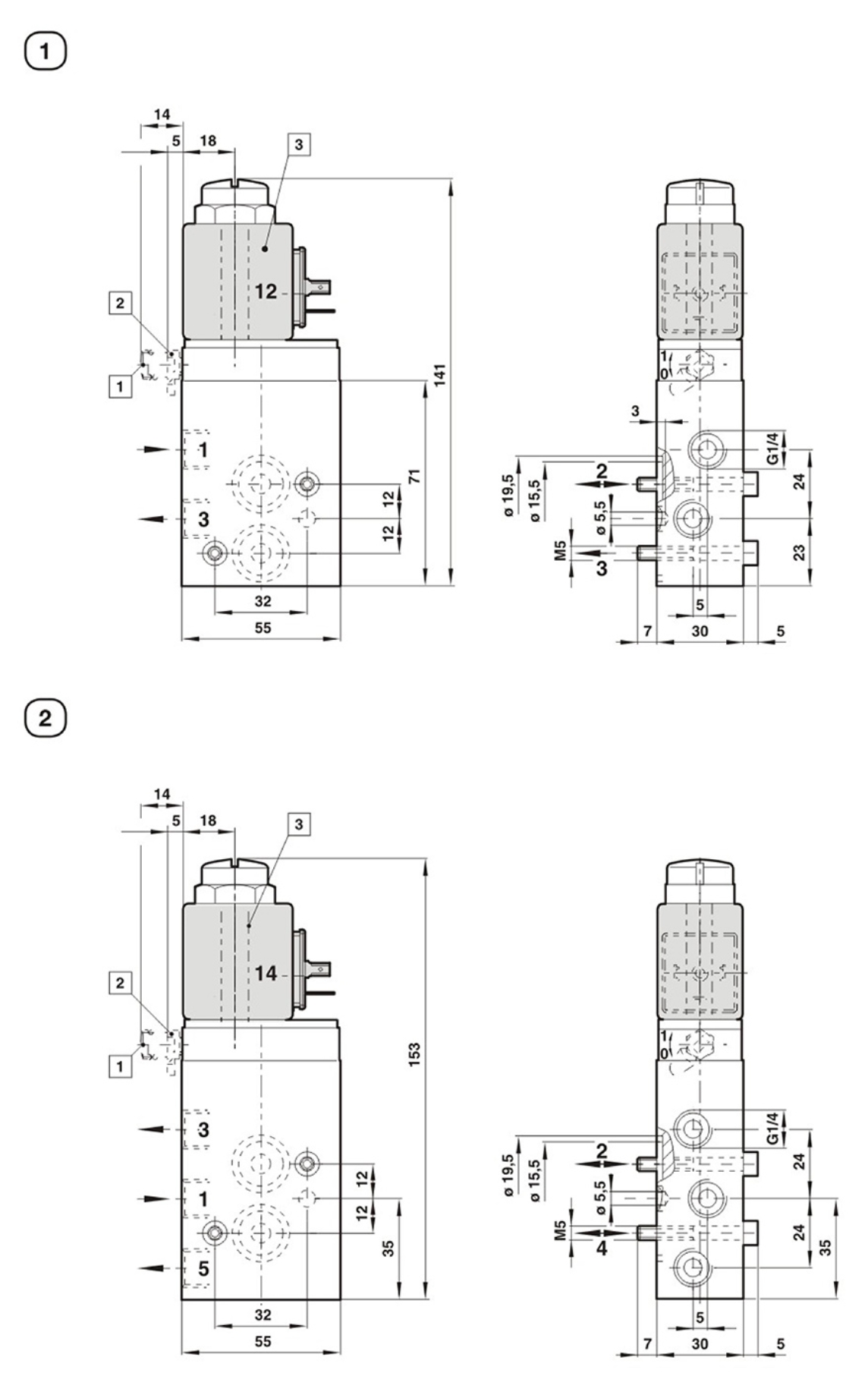

1. Manual overshoot without stop
2. Manual overshoot with stop device
3. Solenoid valve 4x90° rotatable
