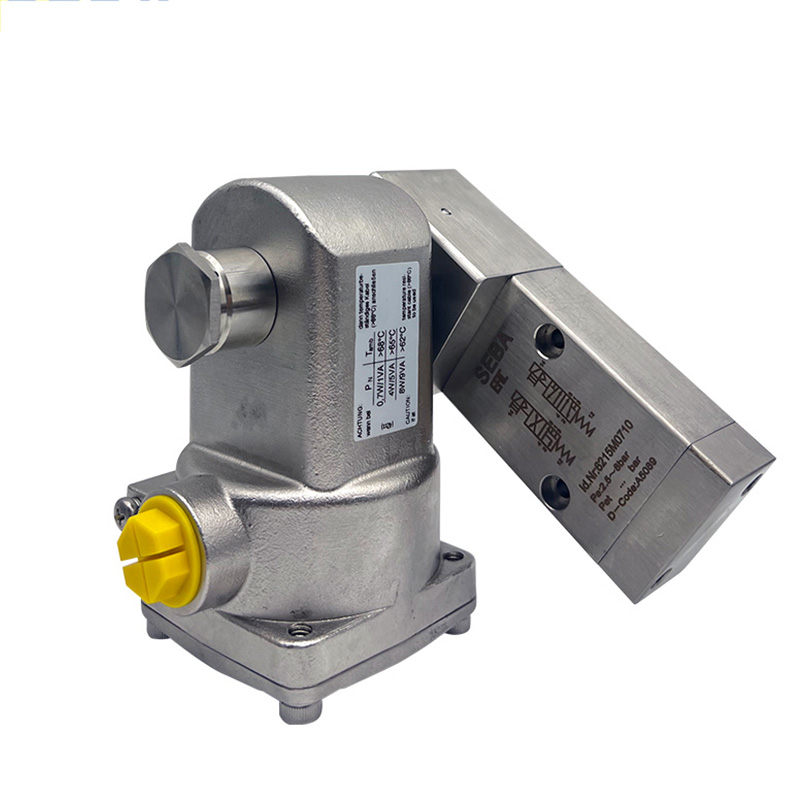

6215 Stainless steel
6215M pipe type&NAMUR interface
3/2,5/2--1/4 NPT
medium:
6215M: Filtered lubricated or non-lubricated compressed air
6215L: Filtered lubricated or non-lubricated compressed air
Work pressure:
2,5...8 bar (36...116 psi)
with internal air supply
Ambient temperature/medium temperature:
-40°C...+60"C(-40...+140°F)
Depends on coil system
The air supply must be dry enough to avoid freezing at temperatures below +2C
When installing outdoors, all connections must be protected from water vapor penetration, and solenoid valves with an IP65 protection rating must be used.
