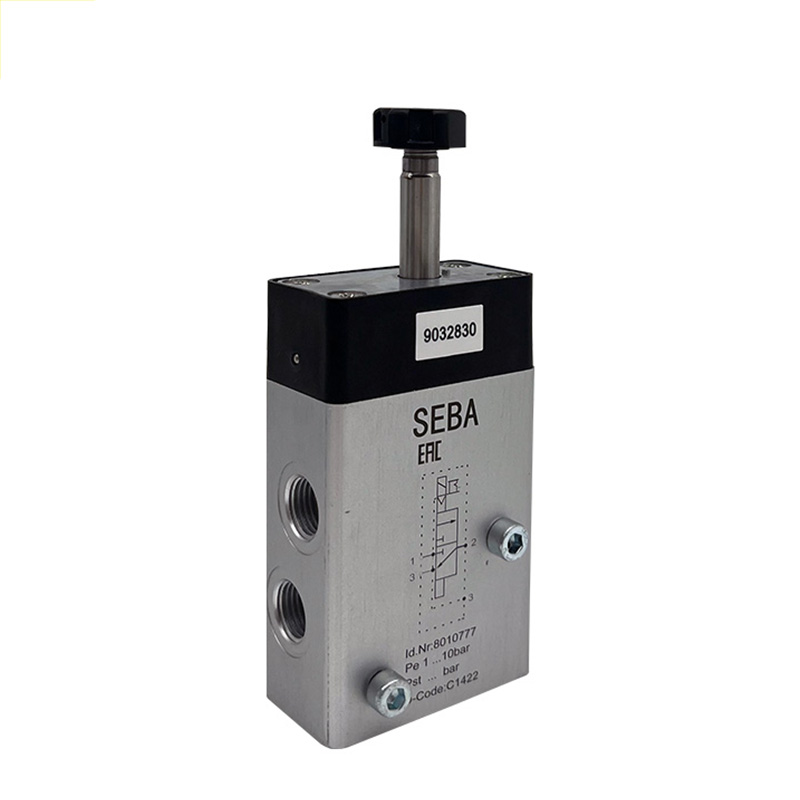

Pipe-connected solenoid valve 80107

Pilot operated solenoid valve, Namur series
2636080207.3/2.5/2&5/3

·Port size: G1/4 and NAMUR interface
·Suitable for single-acting and double-double-acting actuators
·Maintenance-free
·All valves can be equipped with explosion-proof protection coils
·Standard manual emergency control with brake
·Simple design of soft seal slide valve system
·Easy to interchange solenoids

medium:
Filtered, lubricated or non-lubricated compressed air
operate:
Indirect solenoid operated T-spool valve
Work pressure:
Maximum 10bar (145psi)
Port size:
G1/4
Flow direction:
stable
Fixed installation:
Optional, preferably with a solenoid on top
Ambient/medium temperature:
-20°...+60C(-40...140F)
Depending on the solenoid valve system, the air supply must be sufficiently dry
To avoid freezing when the temperature is below +2C (+35F).
Material:
Housing: Anodized aluminum
Guide flange: plastic (POM)
Seal: NBR
