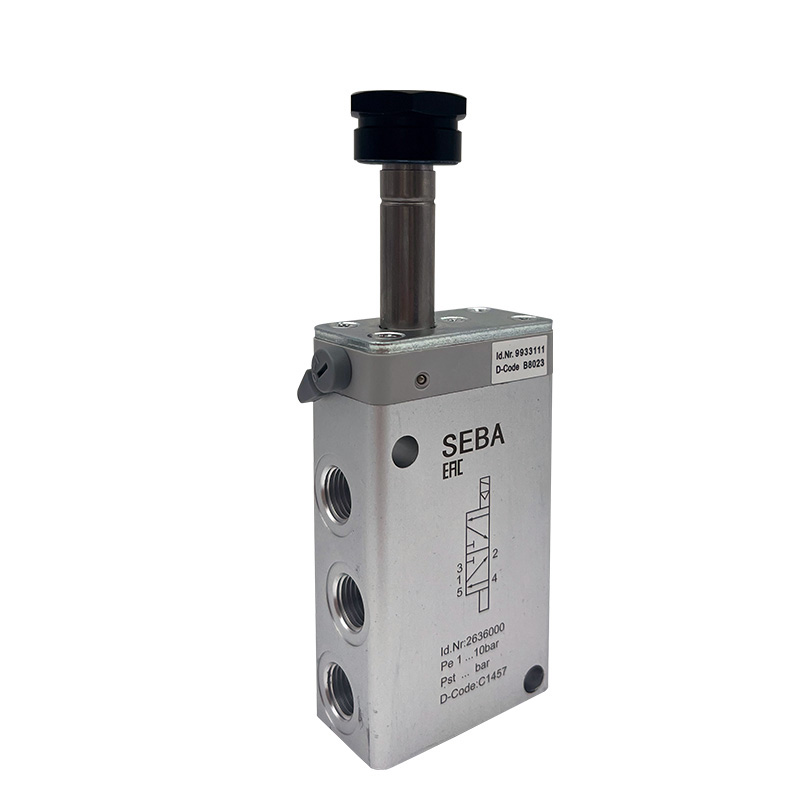

Pipe-connected solenoid valve 26230

Pipe-connected solenoid valve
26360,80207 3/2,5/2,G1/4 & G1/2

1.Single action and double action actuators
2. Manual control with and without stop device
3. Adopt simple soft sealing valve core design
4. Easily interchangeable solenoid valves
5. Maintenance-free

Material
Housing: Anodized aluminum
Guide flange: plastic (POM)
Seals:NBR

Medium: filtered lubricated or non-lubricated compressed air.
Work pressure:
1 ...10 bar (see table below)
Aperture:
6 and 12mm
Flow direction:
Fixed flow
Install:
Optional, preferably the solenoid valve is on the top
Ambient temperature:-10°C ...+60°C
-20°C (available on request)
Depends on solenoid valve system
The air supply must be dry enough to avoid freezing at temperatures below +2C.

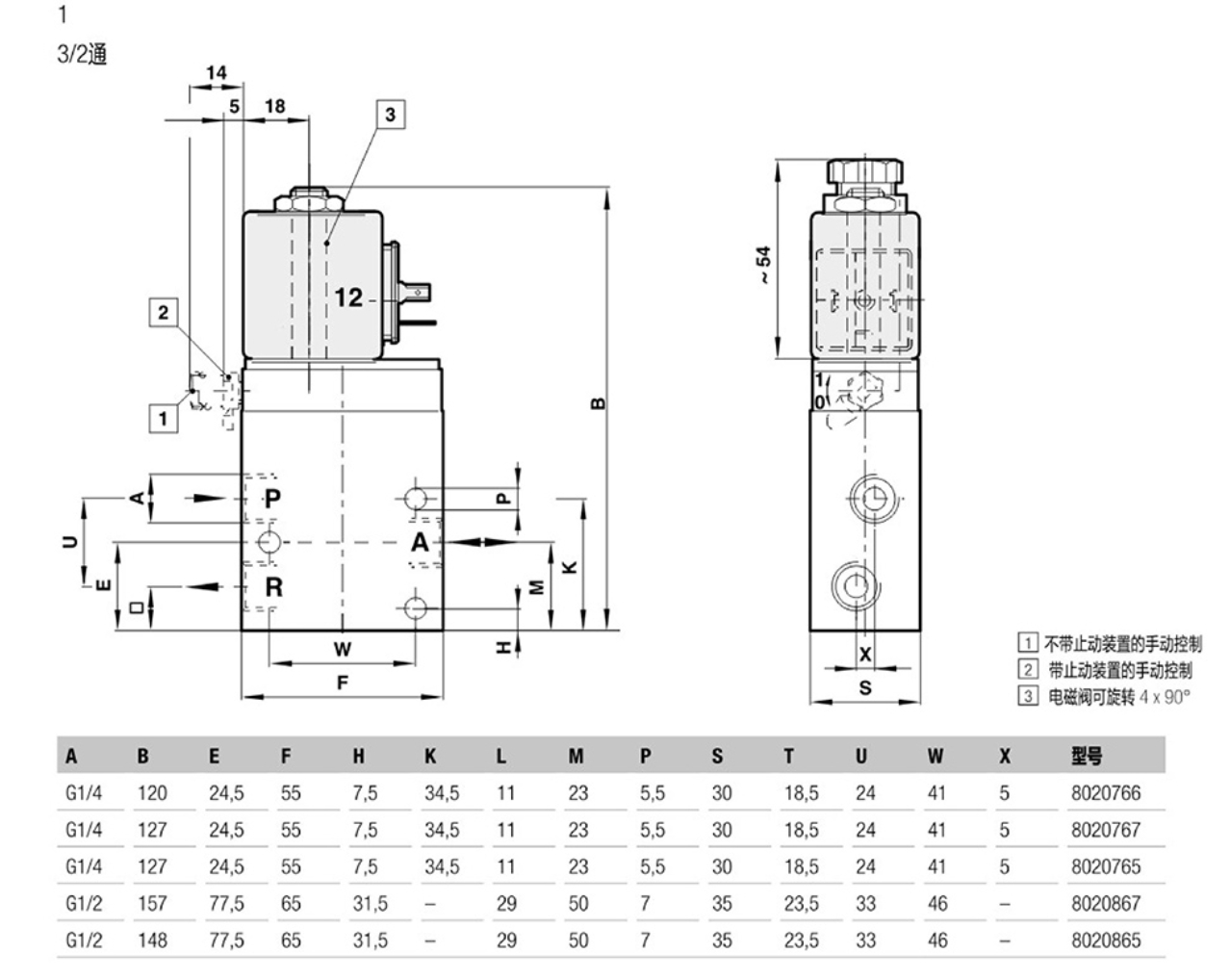

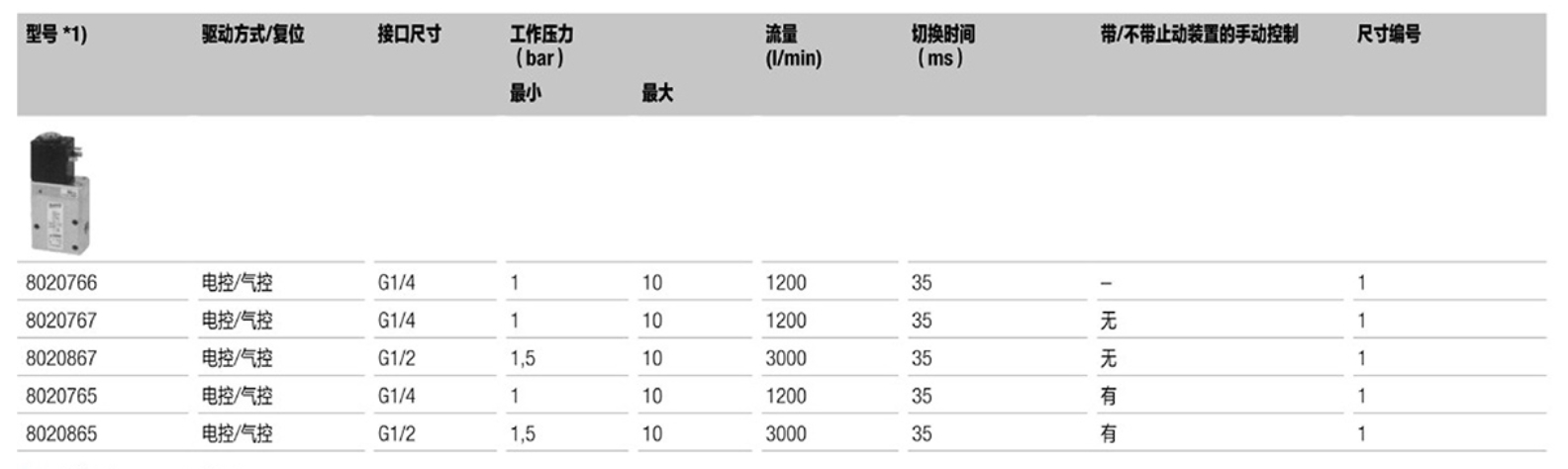

Model-3/2 Normally Closed

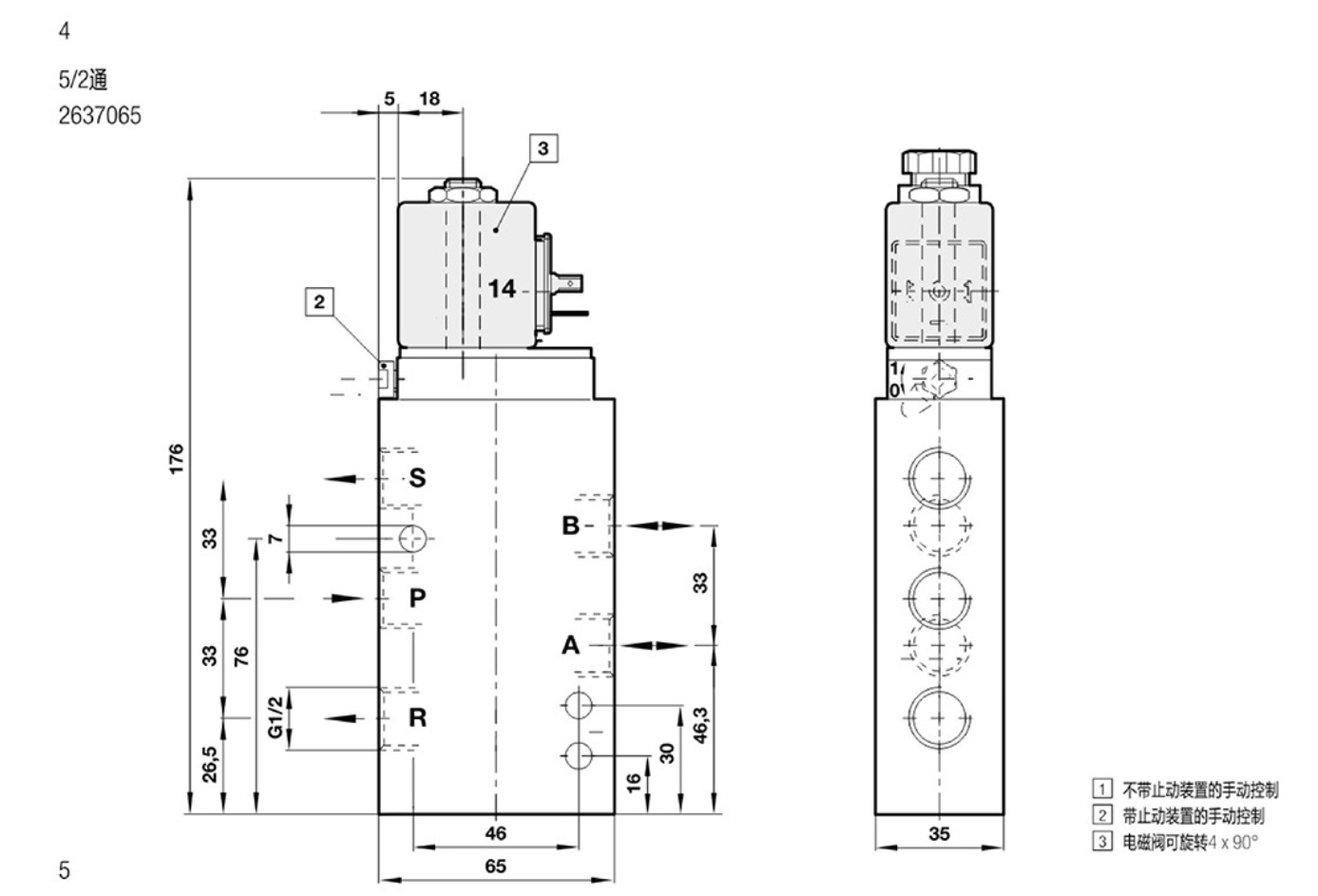

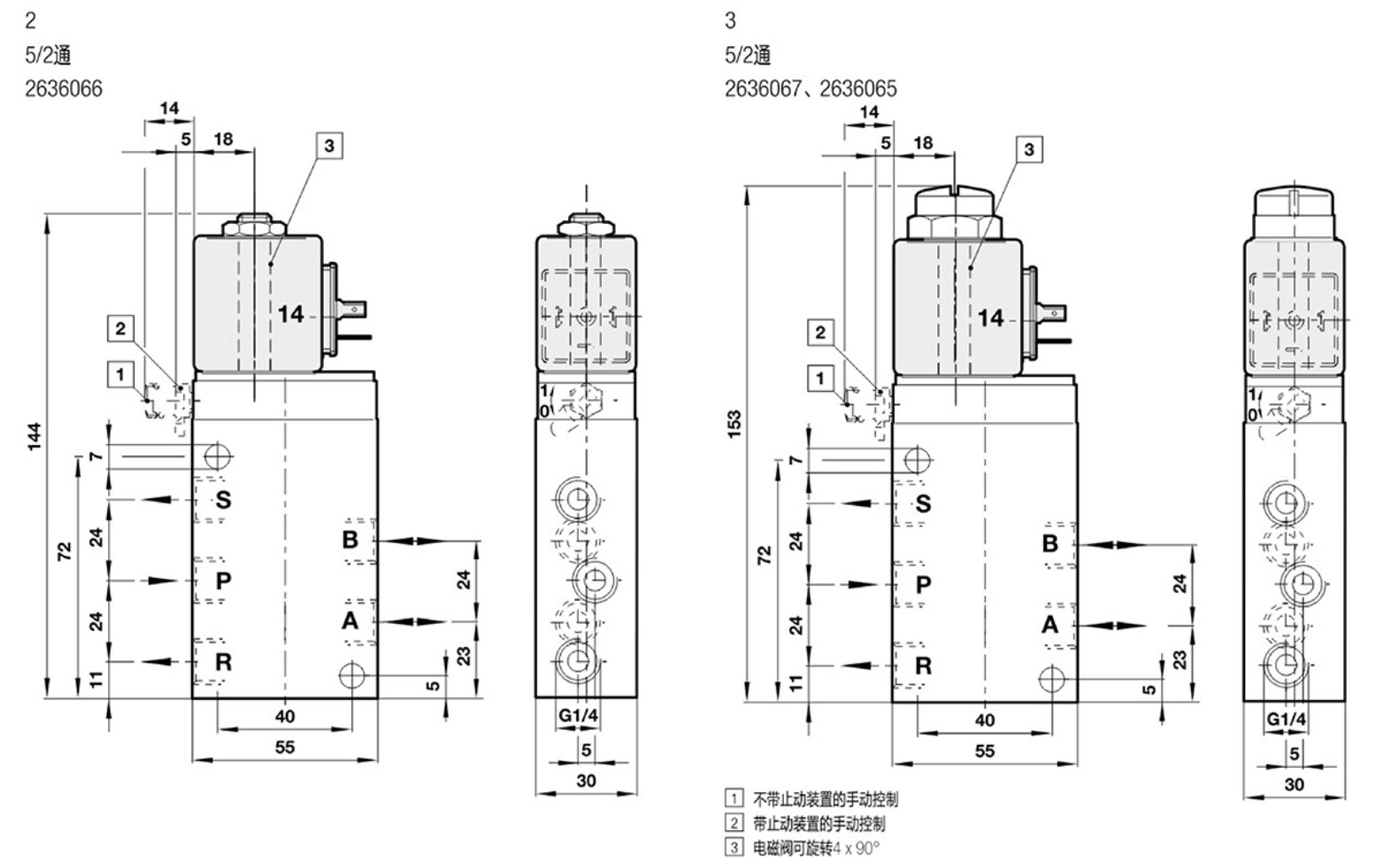

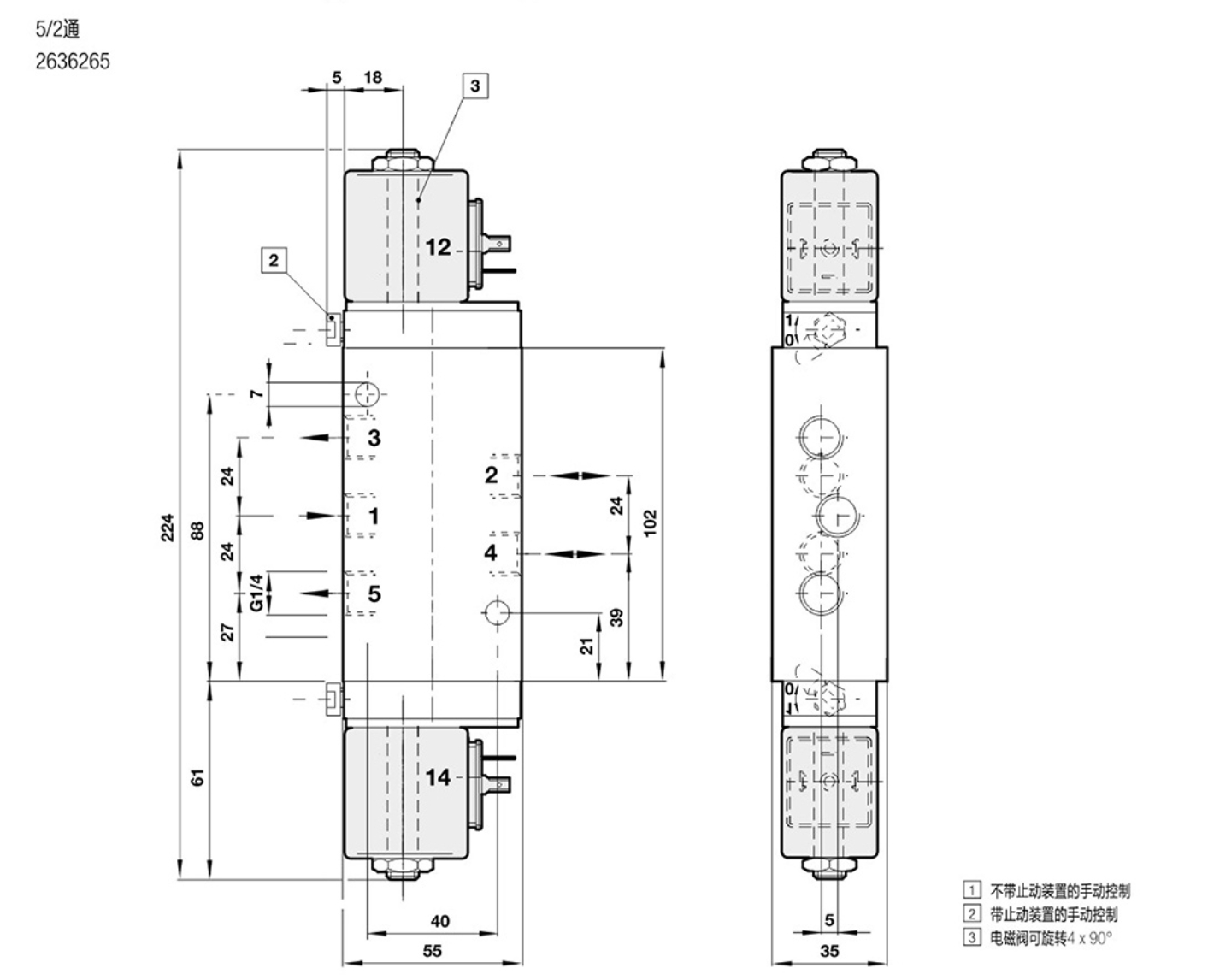

Model-5/2 pass
