ICO3S Lifting valve
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Product details
ICO3S -2/2,3/2 or 5/2 poppet valves
Electromagnetically actuated, direct solenoid operated
- Port size: 1/4"... 1/2”(ISO G/NPT) Namur or manifold
- Direct acting solenoid valve
- High flow
- 12 bar inlet pressure
- Control of pneumatic or hydraulic operated equipment
- Environmental protection: NEMA 4XIP66/X8
- Reliable and long life, ideal for a one time installation
- Certifications:
Technical features
- Medium:Hydraulic and pneumatic-customer to specify and confirm compatibility
- Operation:Direct solenoid operated poppet valves
- Mounting position:Solenoid vertica
- Flow:0.6 Cv(8.7Kv)...3.3 Cv(46.4 Kv)
- Port size:G 1/4,1/2 NPTG 1/4,G 1/2 NAMUR or manifold versions
- Operating pressure:0 ... 12 bar (0 ... 174 psi)
- Temperature:1.Media:-55..+90C(-67..194F) 2.Ambient:See table on page 2 Air supply must be dry enough to avoid iceformation at temperatures below +2°C(+35°F).
- Materials:1.Valve body, trim, coil housing and top cover: stainless steel 1.4404 (316 L) 2.O-rings seats & seals: NBR
- Other seal materials available on request

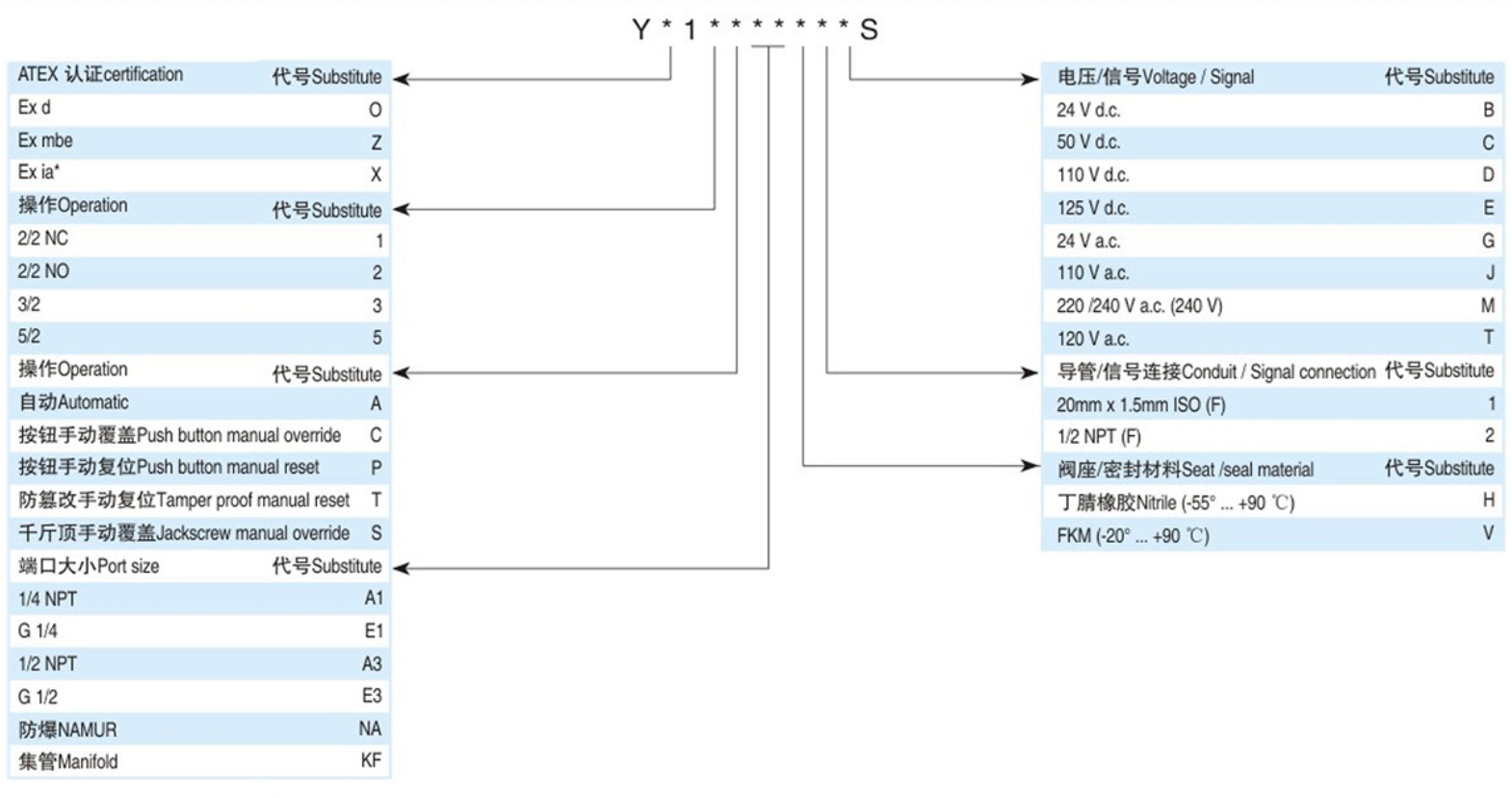

Option selector
