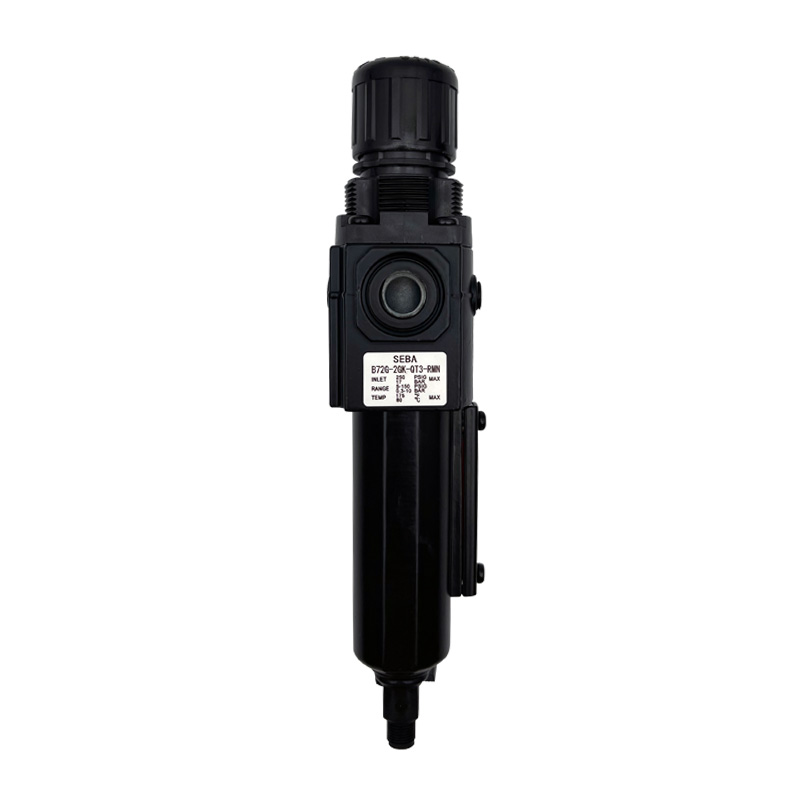

Modular system Filter regulator B72G, B73G, B74G-G1/4..G3/4
- SEBA is designed for pipe connection or modular installation of other products
- Efficiently removes water and particles
- Quick-release bayonet filter bowl
- Push to lock adjustment knob with tamper-resistant attachment
|
Technical Parameters |
|
|
Medium: |
Compressed air only |
|
Maximum inlet pressure: |
10bar: polycarbonate and insured |
|
Pressure range: |
0,3..10bar |
|
Pressure gauge interface: |
Rc1/8 |
|
Ambient temperature: |
,-34°C..+50°C |
|
Material |
|
|
B72G: |
Body: Zinc |
|
B73G: |
Body: Die-cast aluminum |
|
B74G: |
Body: Die-cast aluminum |
