Lubricator L7 Series

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product details

Modular system

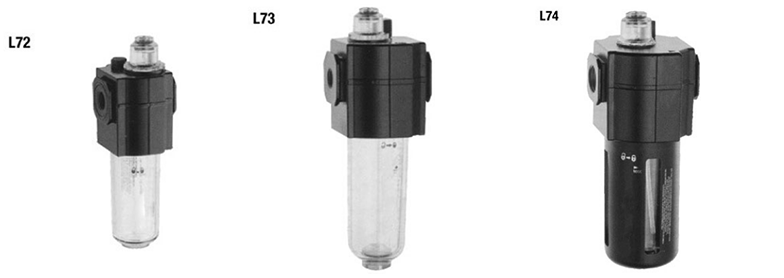

Lubricators L72, L73, L74-G1/4..G3/4

SEBA is designed to be a Pipe connection or modular installation
The flow sensor can be used in a wide range of flows Provides constant oil delivery density within the range
360° all-round visible oil drop view window for easy titration setting
The micro-mist lubricator is ordinary pneumatic The system provides optimum lubrication

Specification

Technical Parameters
Medium:	Compressed air only
Maximum inlet pressure:	10 bars
Start point:	L72M: 0.94dm3/s. L72C: 0.47dm3/s L73: 0,71dm3/s L74: 0,94dm3/s The minimum flow required when the inlet pressure of the oil show device is 6.3ba.
Filter bowl volume:	L72: 0,051 L73: 0,101 L74: 0,201 Ambient temperature: -34°C..+50°C The air supplied must be dry enough to avoid temperatures below +2°C freezes when

Material
L72:	Transparent filter bowl: PC Metal Bowl: Zinc Body: Zinc Elastic material: CR NBR Visual oil dome: Transparent PA Liquid level indicator (metal filter cup): transparent PA
L73:	Transparent filter bowl: PC, with steel guard Transparent PC optional, optional aluminum Body: Die-cast aluminum Visual oil dome: Transparent PA Elastic material: CR&NBR
L74:	Transparent filter cup: PC with steel shroud Metal Bowl: Die-cast aluminum Body: Die-cast aluminum Visual oil dome: Transparent PA Elastic material: CR&NBR

Dimension drawing

Lubricator L7 Series

Lubricator L7 Series
