F39 Oil removal filter

Home  >  Shop  >  F.R.L air handling element  >  F39 Oil removal filter
F39 Oil removal filter

F39 Oil removal filter

+86-17612128384

nb@seba.com.cn

+86-17612128384

F39 Oil removal filter
F39 Oil removal filter
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Product details

Micro Combo Kit, Universal Oil removal filter F39-G1/8, G1/4

·Compact structure

·Maximum residual oil content and particle removal Except up to 0,01μm level

Specification

Technical Parameters

Medium:

Compressed air only

Maximum inlet pressure:

10bar transparent filter cup

Filter element:

0,01m

Residual oil content:

0,01ppm at +21C

Filter bowl size:

31ml

Ice removal method:

manual or automatic

Ambient/medium temperature:

Transparent filter cup -34℃..+50°C
The air supplied must be dry enough to avoid
Freezing at temperatures below +2C

Note: Install an F07 filter with a 5mm filter element upstream of the F39 filter
filter for maximum service life.

Material

Body:

Zinc alloy

Filter bowl:

Plastic

Filter element:

Synthetic fiber and PE foam

Elastic material:

NBR

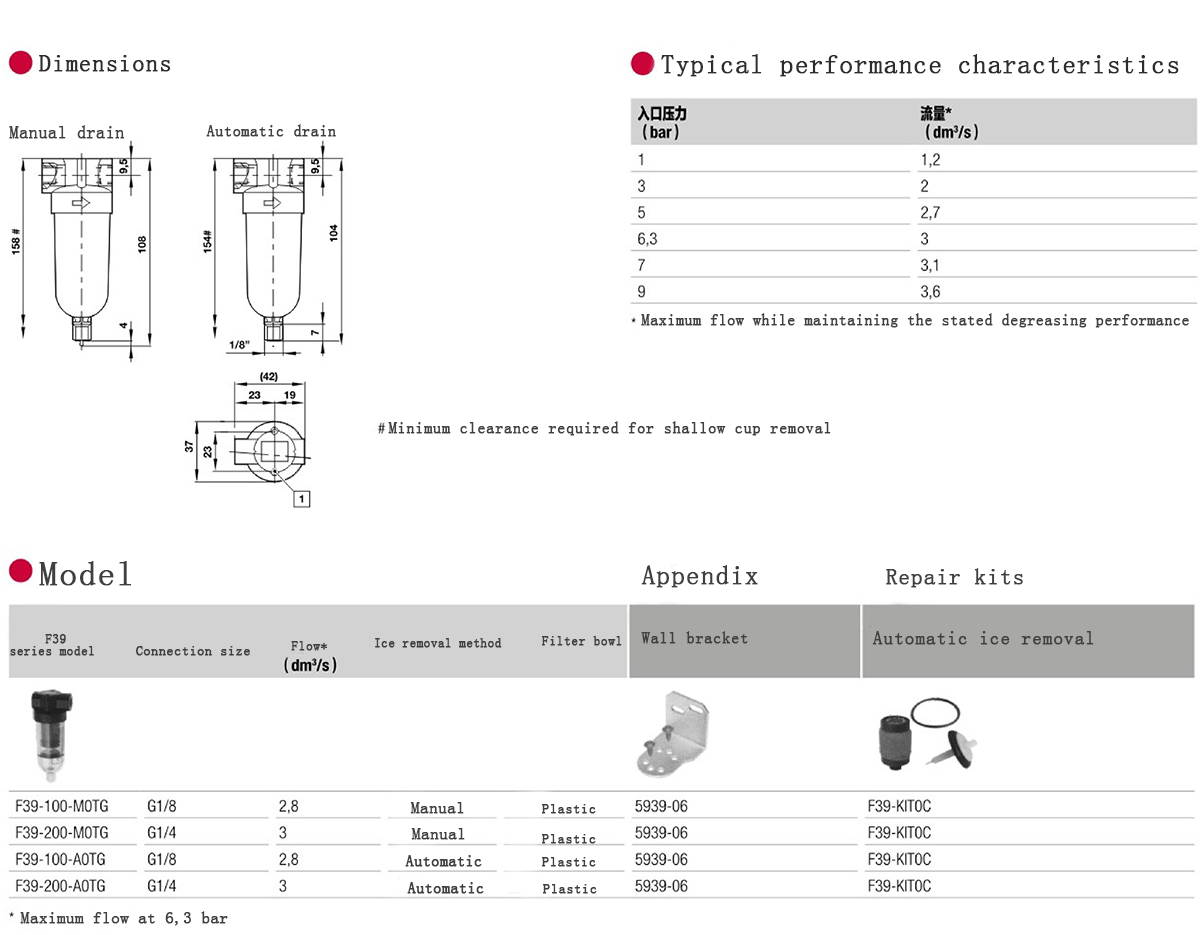

Dimension drawing
