Universal filter F7 series

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product details

Modular system

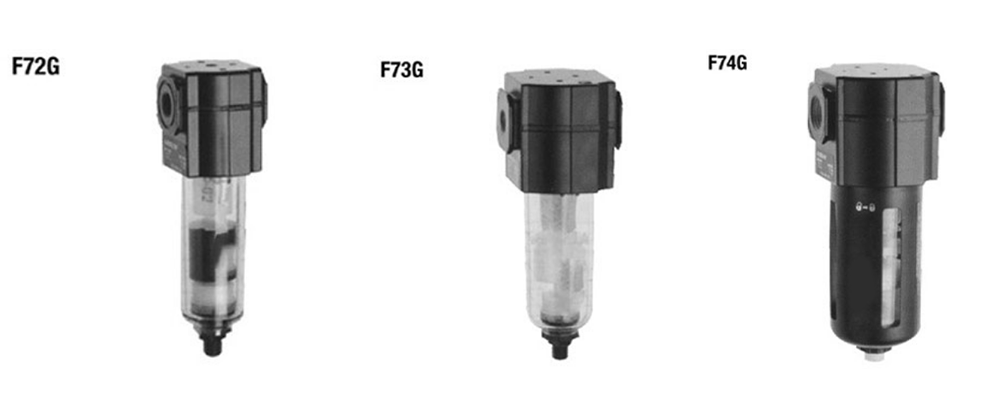

Universal filter F72G, F73G, F74GG1/4..G3/4

· SEBA is designed for pipe connection or Modular installation of other products

· Quick-release bayonet filter bowl

Specification

Technical Parameters
Medium:	Compressed air only
Maximum inlet pressure:	10 bars
Ambient temperature:	,-34°C..+50°C The air supplied must be dry enough to avoid freezing at temperatures below +2°C

Material
F72G:	Valve body: die-cast zinc Filter bowl: transparent PC, with steel guard Transparent PC optional, optional aluminum Liquid level indicator (metal filter cup): transparent PA Filter element: sintered PP Elastic material: CR&NBR
F73G:	Body: Die-cast aluminum Filter bowl: transparent PC, with steel guard Transparent PC optional, optional aluminum Liquid level indicator (metal filter cup): transparent PA Filter element: sintered PP Elastic material: CR&NBR
F74G:	Body: Die-cast aluminum Bowl: Clear PC or die-cast aluminum with steel guard Liquid level indicator (metal filter cup): transparent PA Filter element: sintered PP Elastic material: CR&NBR

Dimension drawing

Universal filter F7 series

Universal filter F7 series
