Lubricator L07

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product details

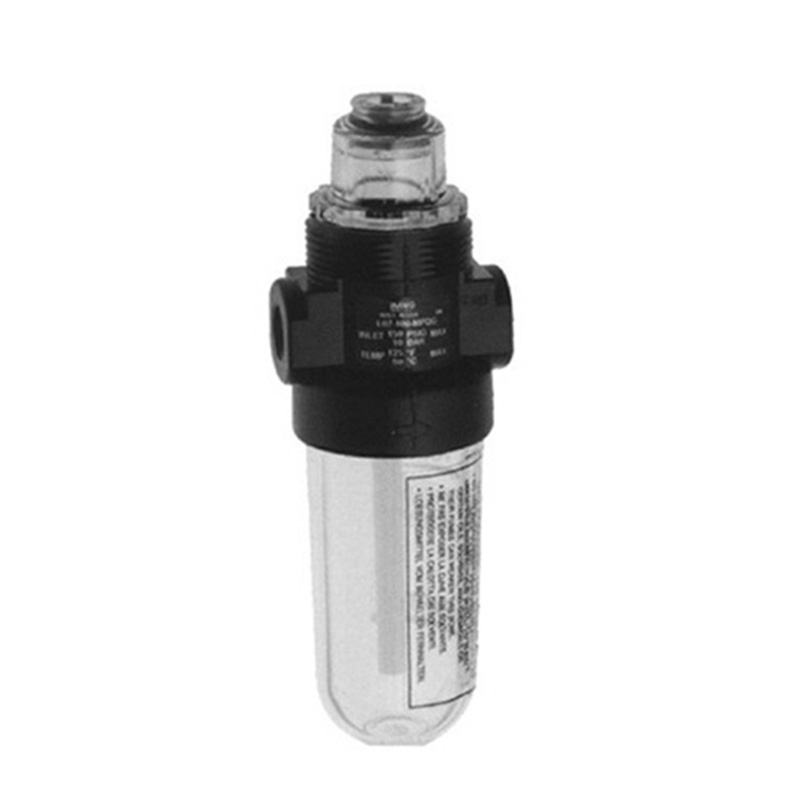

Micro Combo Kit, Universal Lubricator L07-G1/8, G1/4

1.Micro-mist lubricators are used for most general-purpose gas Dynamic application provides fine mist particles 2.Transparent filter bowl, 360°visible

Specification

Technical Parameters
Medium:	Compressed air only
Maximum inlet pressure:	10 bars
Start point:	0,24dm3/s The minimum flow required when the inlet pressure of the oiler is 6.3bar
Ambient temperature:	,-20°C..+50°C The air supplied must be dry enough to avoid temperatures below +2°C freezes when

Material
Body:	Zinc alloy
Filter bowl:	PC or zinc alloy
Visual Oil Dome:	PA
Elastic material:	NBR

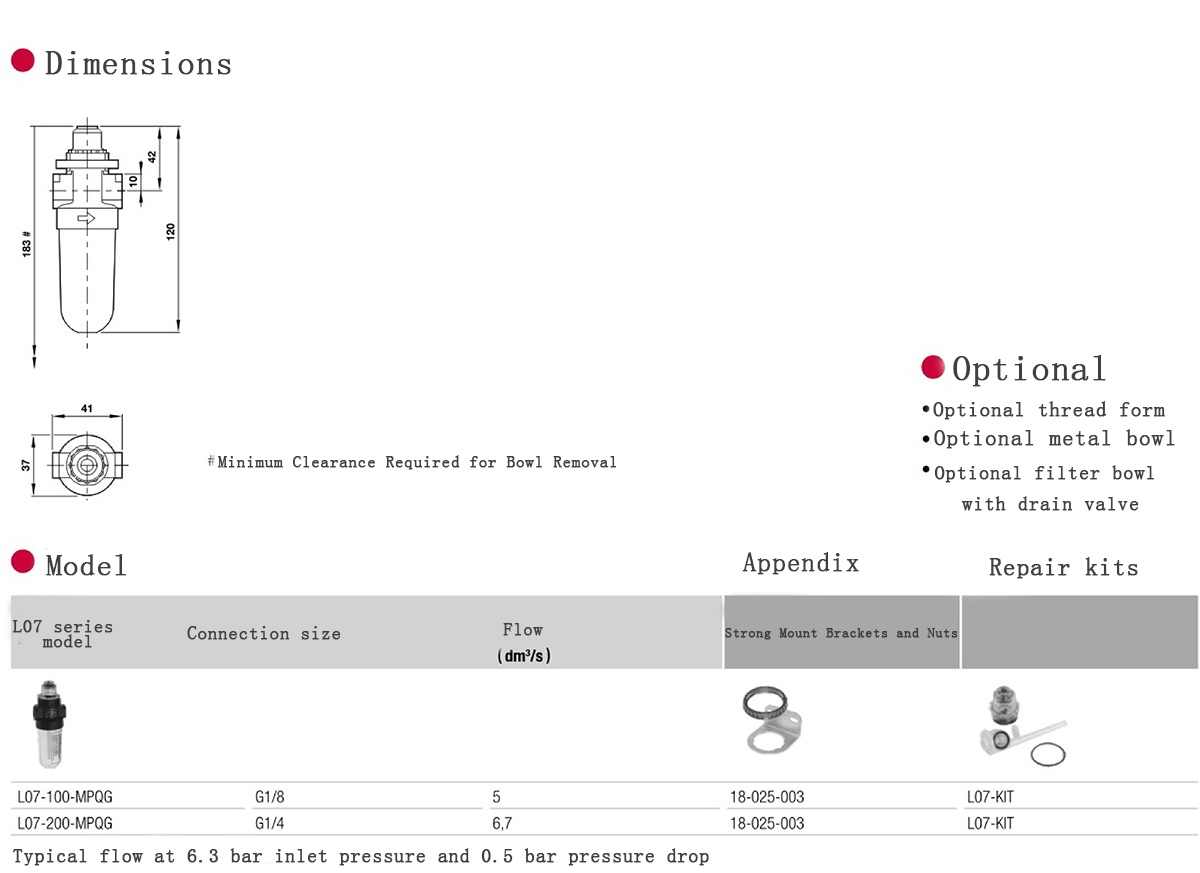

Dimension drawing

Lubricator L07

Lubricator L07
