R07 Pressure reducing valve

+86-17612128384

nb@seba.com.cn

+86-17612128384

R07 Pressure reducing valve

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product details

Miniature combination kit, universal
Pressure-reducing valve R07-G1/8, G1/4

Tubular pressure reducing valves meet the needs of general pneumatic industry applications
The standard is overflow type
· No rise adjustment knob, with quick locking function

Specification

Technical parameter
Media:	Compressed air only
Maximum inlet pressure:	20 bar
Pressure gauge interface:	Rc1/8
Ambient temperature:	,- 34℃.. + 65℃ The air supplied must be dry enough to avoid temperatures below +2 ° CHourly freezing
Pressure range:	0, 3.. 7bar 0, 5.. 10bar
Note: Outlet pressure can be adjusted to be higher or lower than the listed pressure.

Material
Body:	zinc alloy
Bonnet and knob:	acetal
Valve:	brass
Elastic material:	NBR

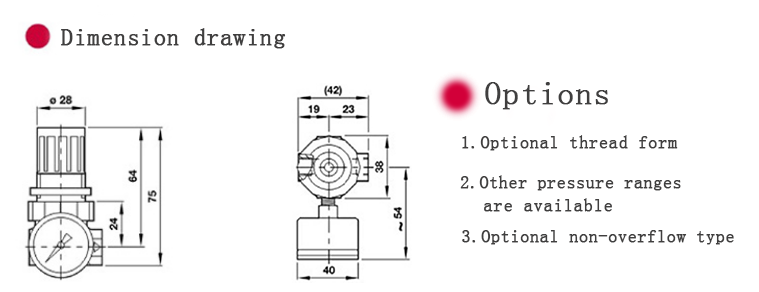

Dimension drawing

R07 Pressure reducing valve

R07 Pressure reducing valve
