R73G pressure reducing valve

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product details

Modular system：

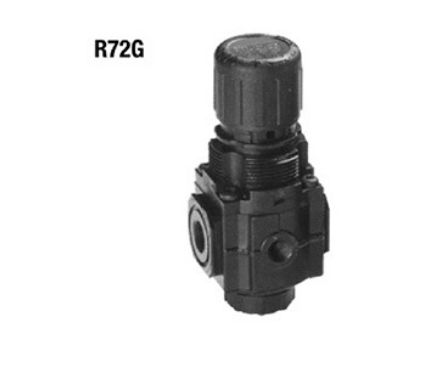

Pressure-reducing valve R72G, R73G, R74GG1/4... G3/4

·SEBA is designed to carry tubes
Connector or modular installation
· Balance valve design provides optimal pressure control
Standard overflow type pressure reducing valves are available in the system
Lower downstream pressure during occlusion
Push to lock the adjustment knob with a tamper-proof attachment

Specification

Technical parameter
Media:	Compressed air only
Maximum inlet pressure:	20 bar
Pressure gauge interface:	Rc1/8
Ambient temperature:	R72G:-34℃.. + 65 ℃ R73G&R74G:-34°℃.. +80°C The air supplied must be dry enough to avoid temperatures below +2 °C Hourly freezing
Pressure range:	0, 3.. 10bar(knob)) 0, 7.. 17bar (T- shape Rod)) - 73 and 74 series only Note: Outlet pressure can be adjusted to be higher or lower than the listed pressure.

Material
R72G:	Body: die cast zinc Bottom plug: acetal Valve cover: acetal Valve: PP&TPV Elastic material: NBR
R73G:	Valve body: cast aluminum Valve cover: die-cast zinc Bottom plug: acetal Elastic material: NBR
R74G:	Shell and frame cast aluminum Bottom plug: acetal Elastic material: NBR

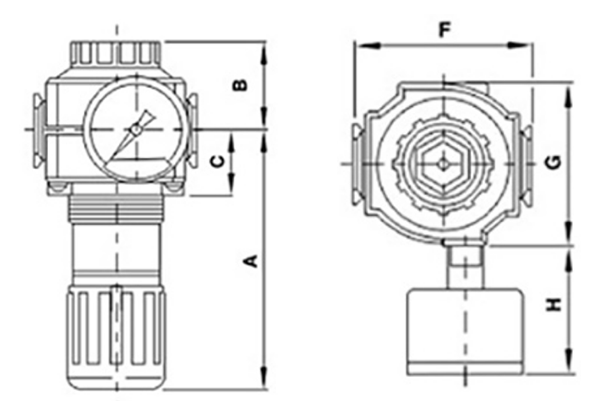

Dimension drawing

Series	A	B	C	F	G	H	Panel	Panel thickness
72	73	33	26	50	48	35	40	0...4
73	96	39	31	68	62	56	48	2...6
74	127	43	31	80	74	56	52	2...6
