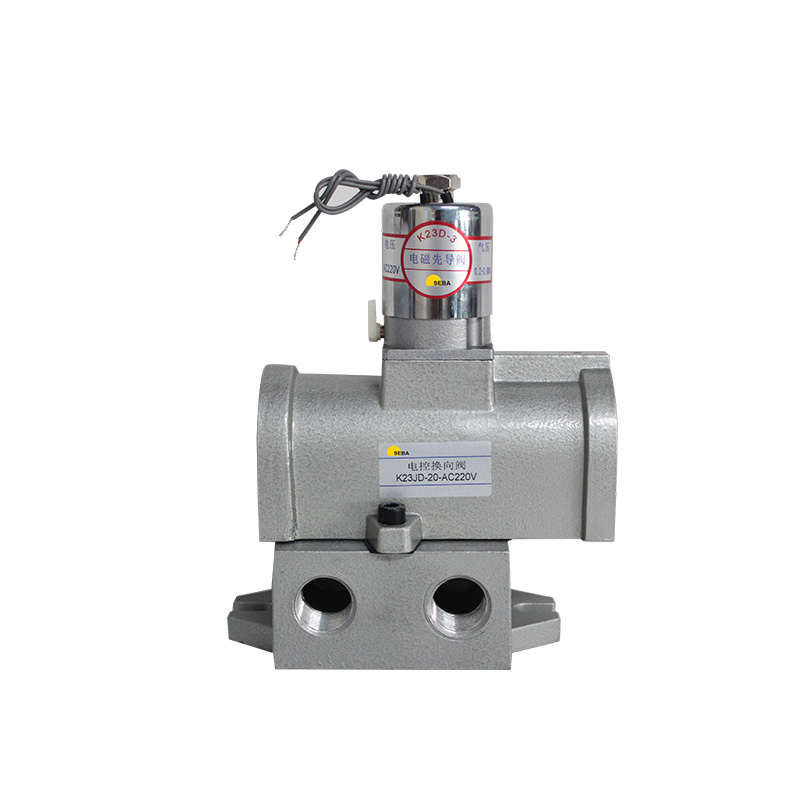

K23JD series two-position three-way electronically controlled globe valve
K23JD series two-position three-way electronically controlled globe valve
Features
K23JD series electronically controlled stop valve is an end-face sealed stop-type directional valve. There are two structural forms: normally closed type and normally open type. This series of valves have low requirements for air purification, strong dust resistance, multiple specifications, and a wide diameter range. If the exhaust port is blocked, it can become a two-position, two-way on-off valve. The diameter of this series of valves is 6~25mm with plate connection and 32~50mm with flange connection.

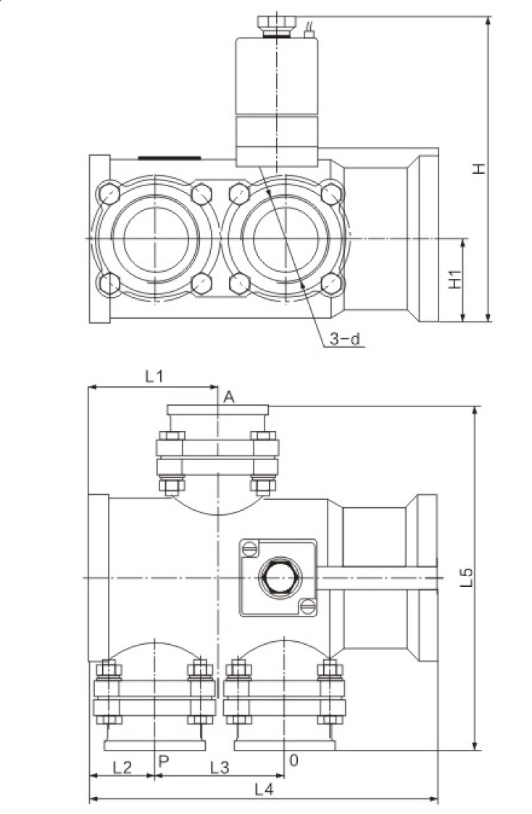

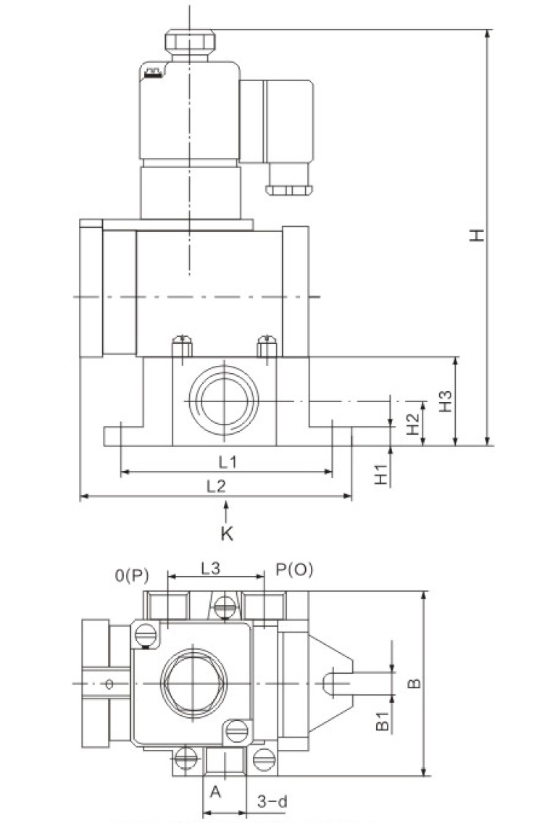

| Board connection | Flange type |
 |
 |

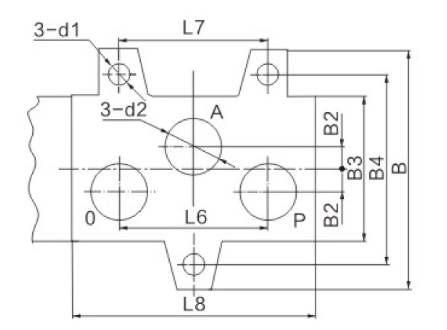

| K-direction view of the valve plate when the bottom surface is connected | K-direction view after removing the valve plate |
 |
 |
