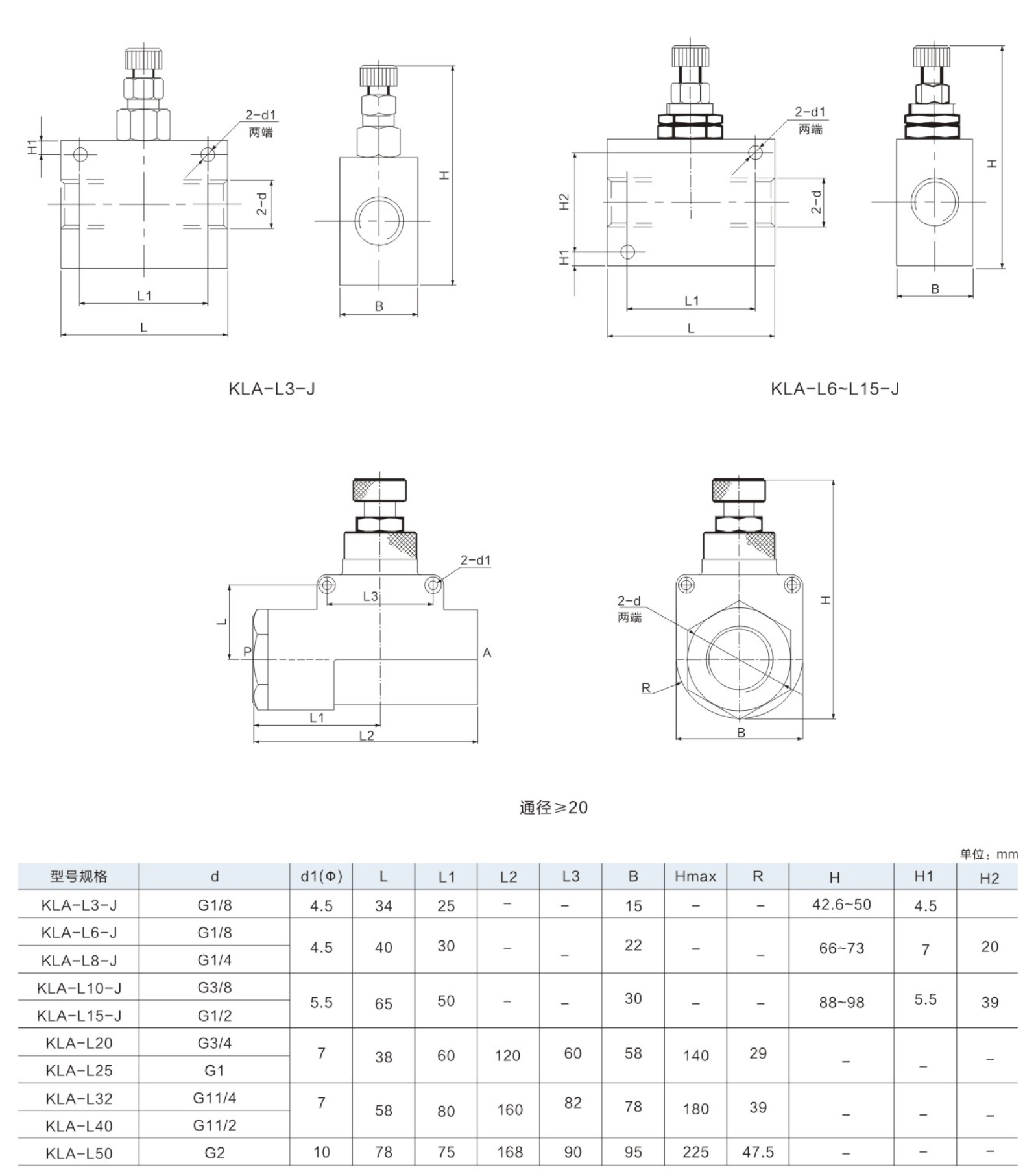

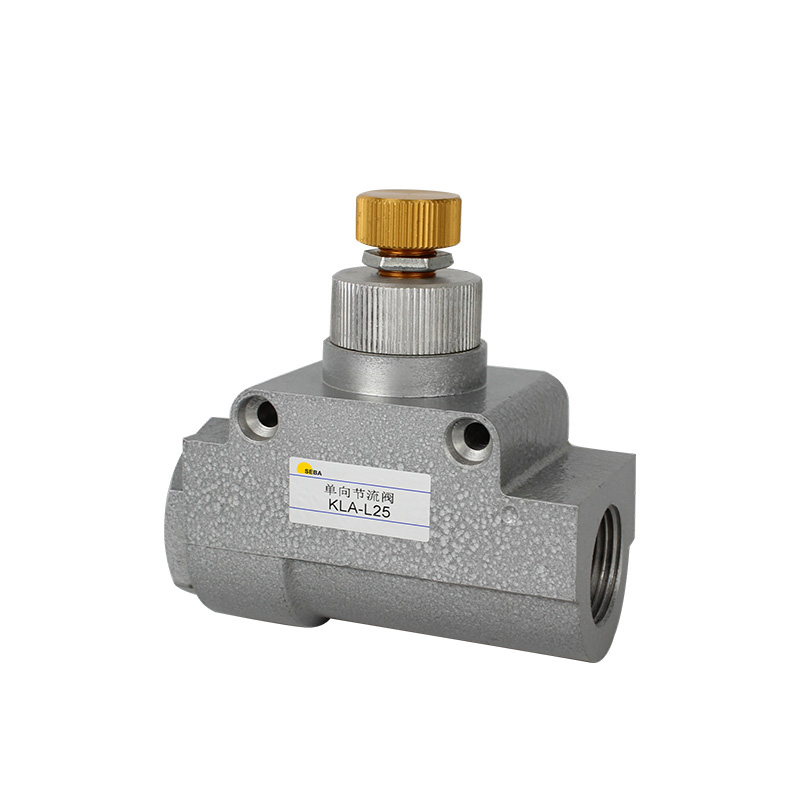

KLA series Single throttle valve

KLA series one-way throttle valve is a combined flow control valve composed of a one-way valve and a throttle valve connected in parallel. When the gas flows in the forward direction, the throttle valve throttles; when the gas flows in the reverse direction, the gas passes directly through the one-way valve without throttling. It is often used to control the movement speed of the actuator, so it is also called "speed control valve". The one-way throttle valve is generally installed between the cylinder and the reversing valve, and can be connected in two different ways: one is the intake throttling method and the other is the exhaust throttling method. When the cylinder movement speed is required to be slow and stable, the exhaust throttling method can be used to form a certain back pressure in the cylinder exhaust chamber and make the cylinder movement more stable.
