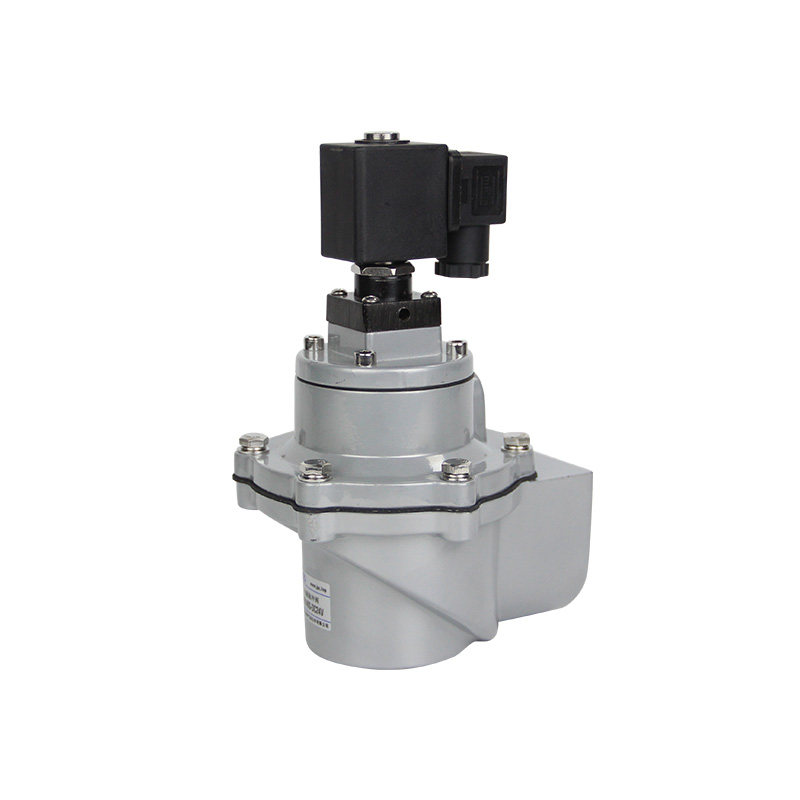

MD series pulse valve

  The MD series electronically controlled pulse valve is a compressed air "switch" in the pulse bag dust collector injection and dust cleaning system. It is suitable for the connection between the air storage cylinder and the dust collector injection pipe. It is controlled by the output signal of the pulse controller to spray the filter bag. Blow away the dust. This valve has the following features:

1. The solenoid valve adopts magnetic isolation sleeve technology, which has fast response time and rapid direction change. It can be adjusted arbitrarily within 360 degrees according to the line direction. This product has various wiring forms and can be used with pulse controllers.
2. The diaphragm is stamped from special domestic rubber, which is resistant to high pressure and has a long service life.
3. The valve body and valve cover adopt die-casting technology, with surface electrophoresis treatment, good anti-corrosion performance, beautiful appearance, compact structure and easy installation.
4. The internal flow channel of the valve body is optimized to provide large exhaust volume and rapid exhaust. Cleanable filter to blow objects or workpieces away.
