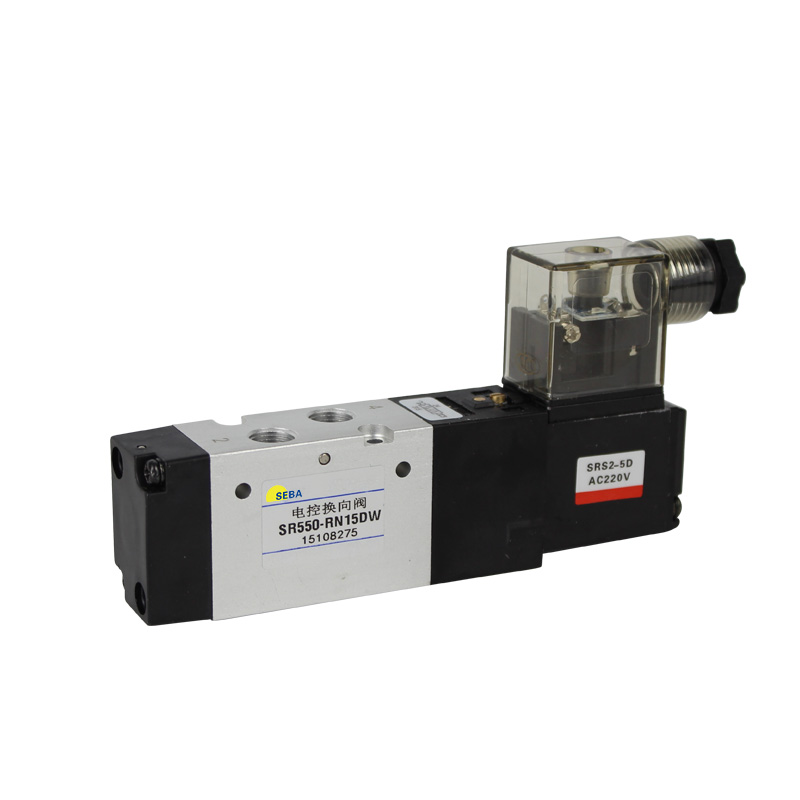

SR550 series Five-way small electronically controlled directional valve

Features
SR550 small electromagnetic reversing valve is a control component directly driven by microelectric signals. Its characteristics are as follows:
1. Low power, no oil supply, no pollution, and can be used in food, medicine, electronics and other industries.
2. Long life, the product’s life span can reach 30,000 times under specified environment.
3. The valve width is only 22mm, making it easy to install into a small and light containerized control system.

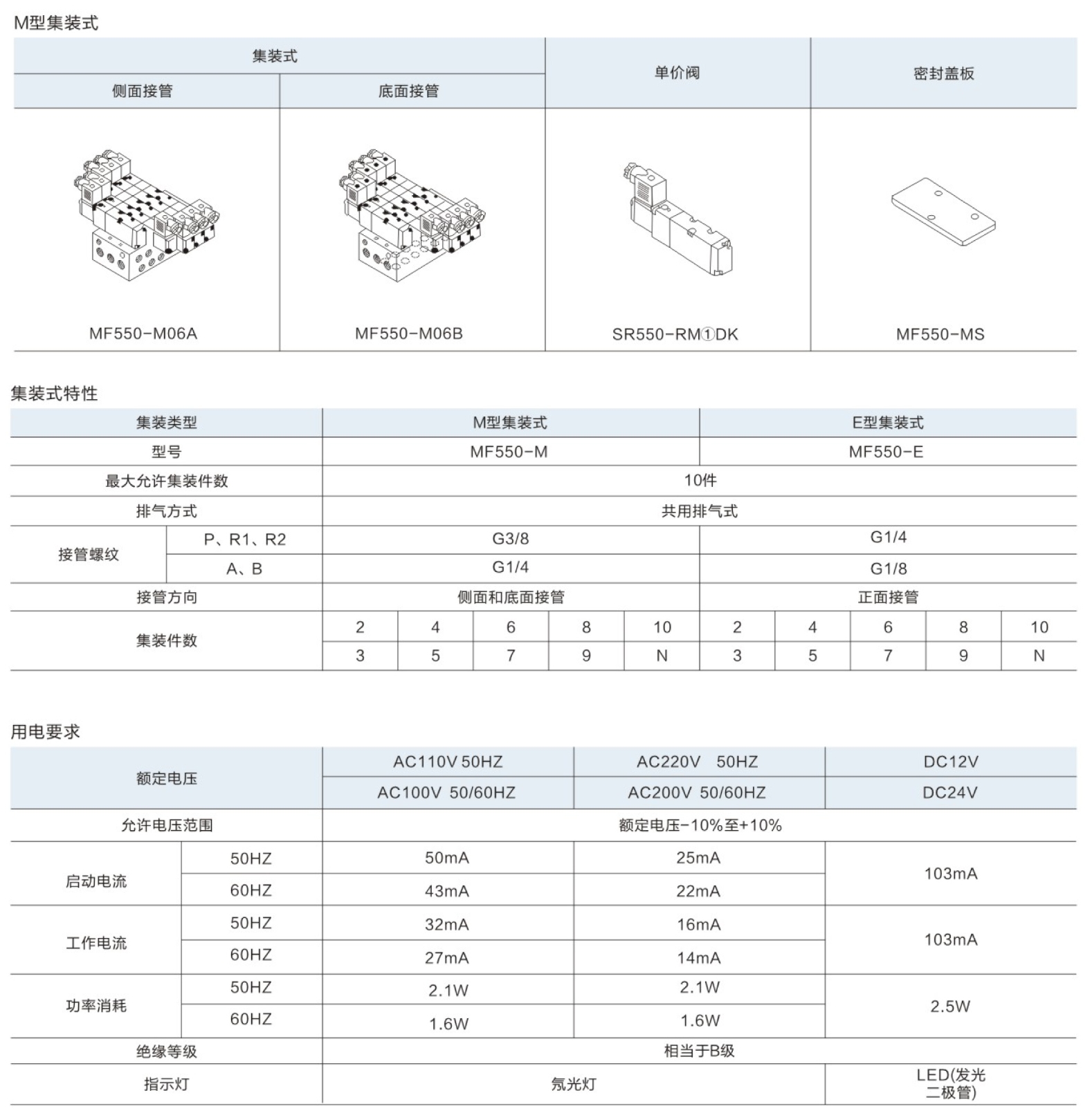

4. The single valve connection method is pipe connection type. There are two assembly methods: M type and E type.
5. Equipped with self-locking manual operation knob.
6. There are three wiring forms: DIN type, screw type and R type, which can be installed with protection circuits and indicator lights.
