SR551 series Five-way small electronically controlled directional valve

Features
SR551 small electromagnetic reversing valve is a control component directly driven by microelectric signals. Its characteristics are as follows:
1. Low power, no oil supply, no pollution, can be used in food, medicine, electronics and other industries
2. Long service life. The product has a service life of up to 30,000 times under specified environments.

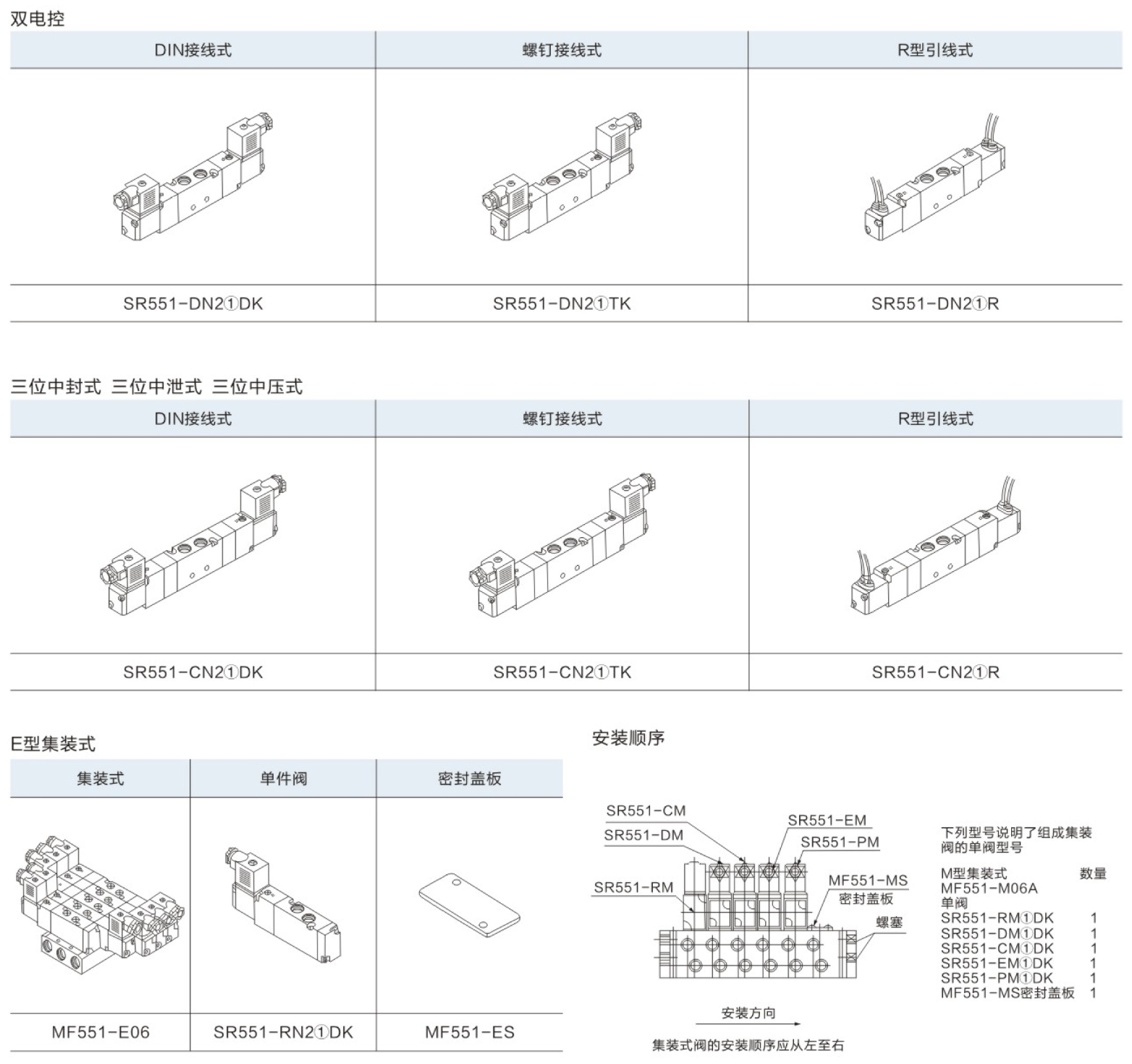

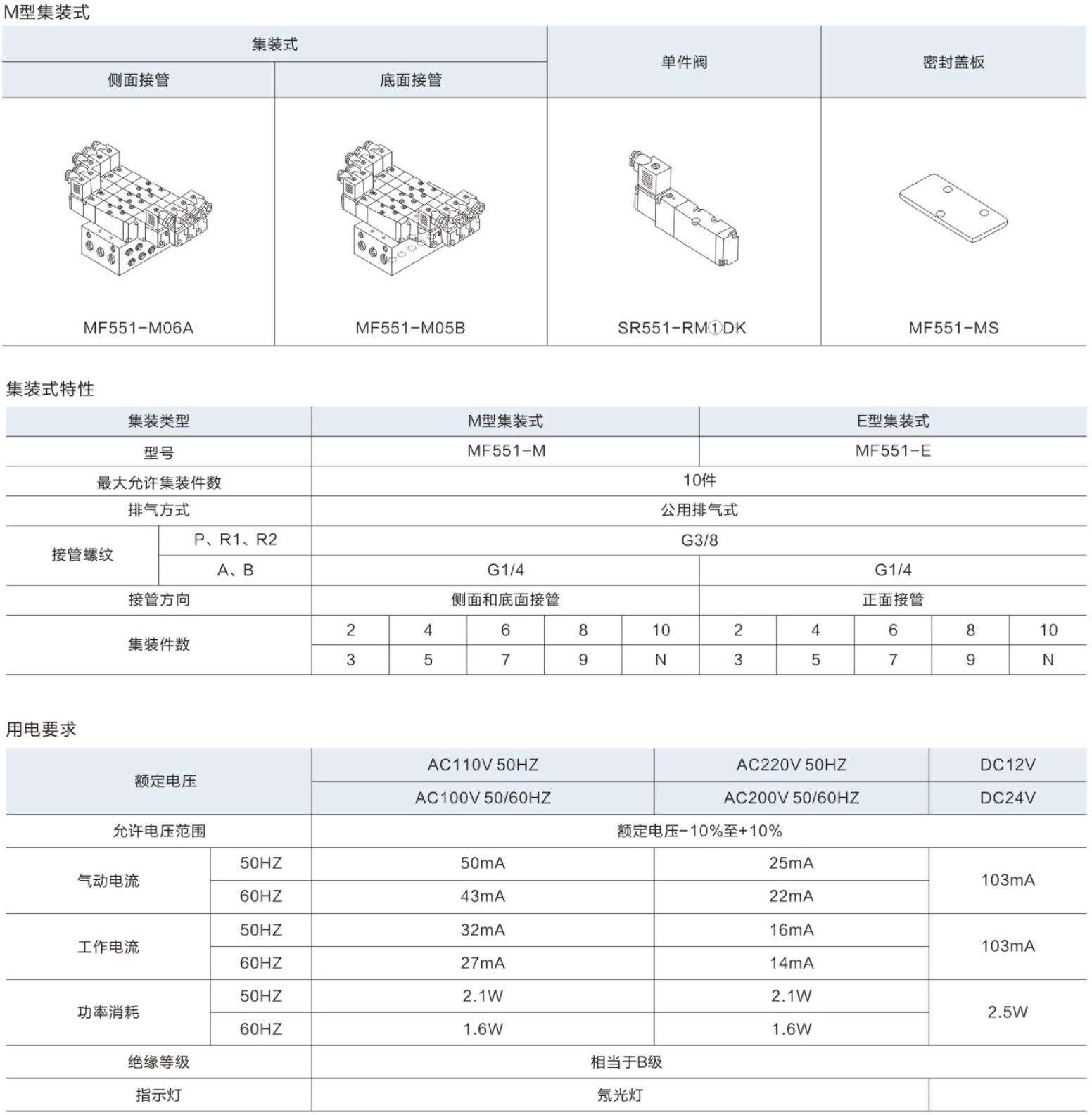

3. The valve width is only 22MM, which is easy to assemble into a light and small containerized control system. 4. The single valve connection method is pipe connection. There are two assembly methods: M type and E type.
5. Equipped with self-locking manual operation knob.
6. There are three wiring methods: DIN type, screw type and R type, and protection circuits and indicator lights can be installed.
