SR561 series Five-way small electronically controlled directional valve

Features
SR561 small electromagnetic reversing valve is a control component directly driven by microelectric signals. Its characteristics are as follows
1. Low power, no oil supply, no pollution, and can be used in food, medicine, electronics and other industries.
2. Long service life. The product has a service life of up to 30 million times under specified environments.
3. The valve width is only 28MM, making it easy to assemble a tiny containerized control system.

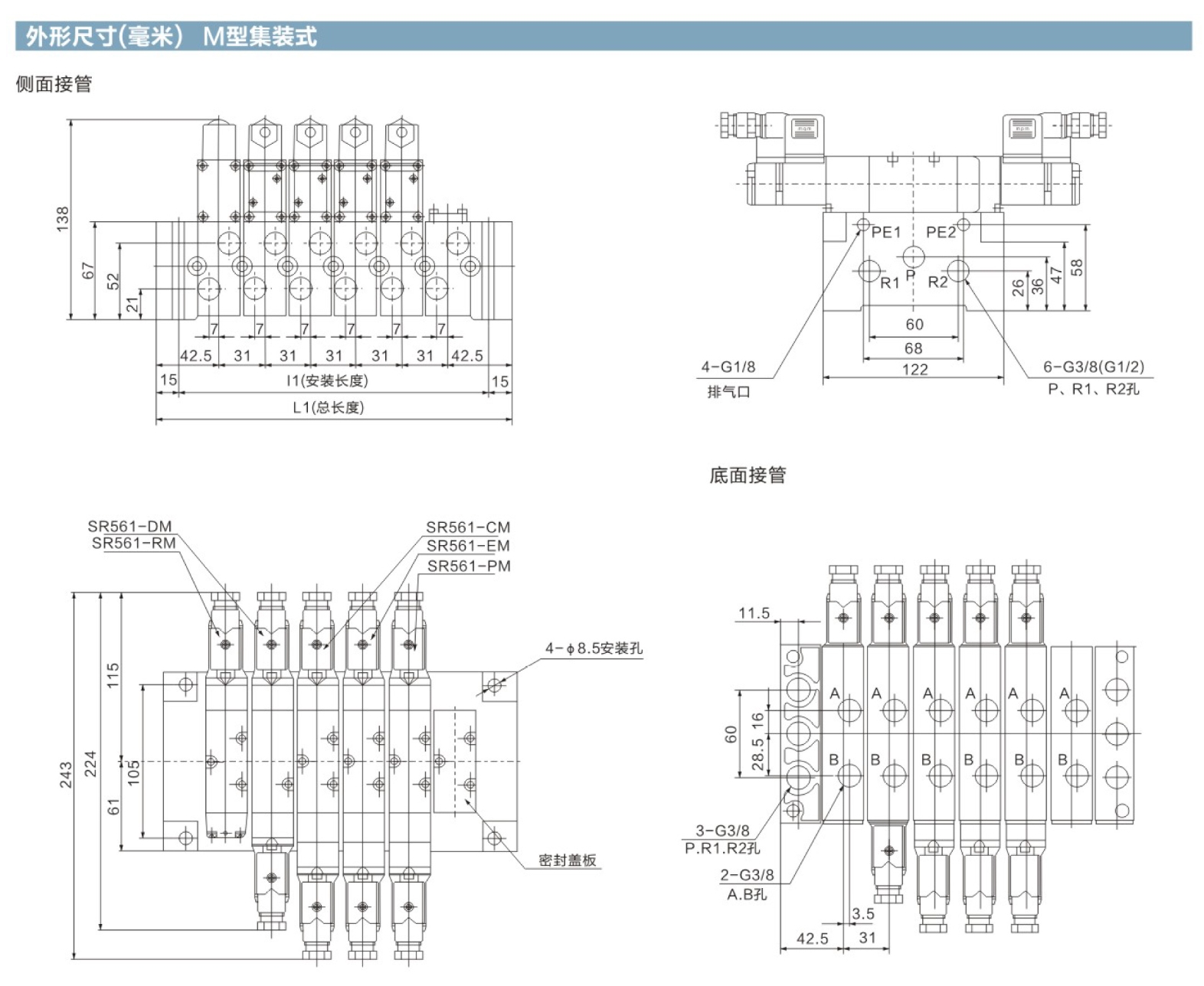

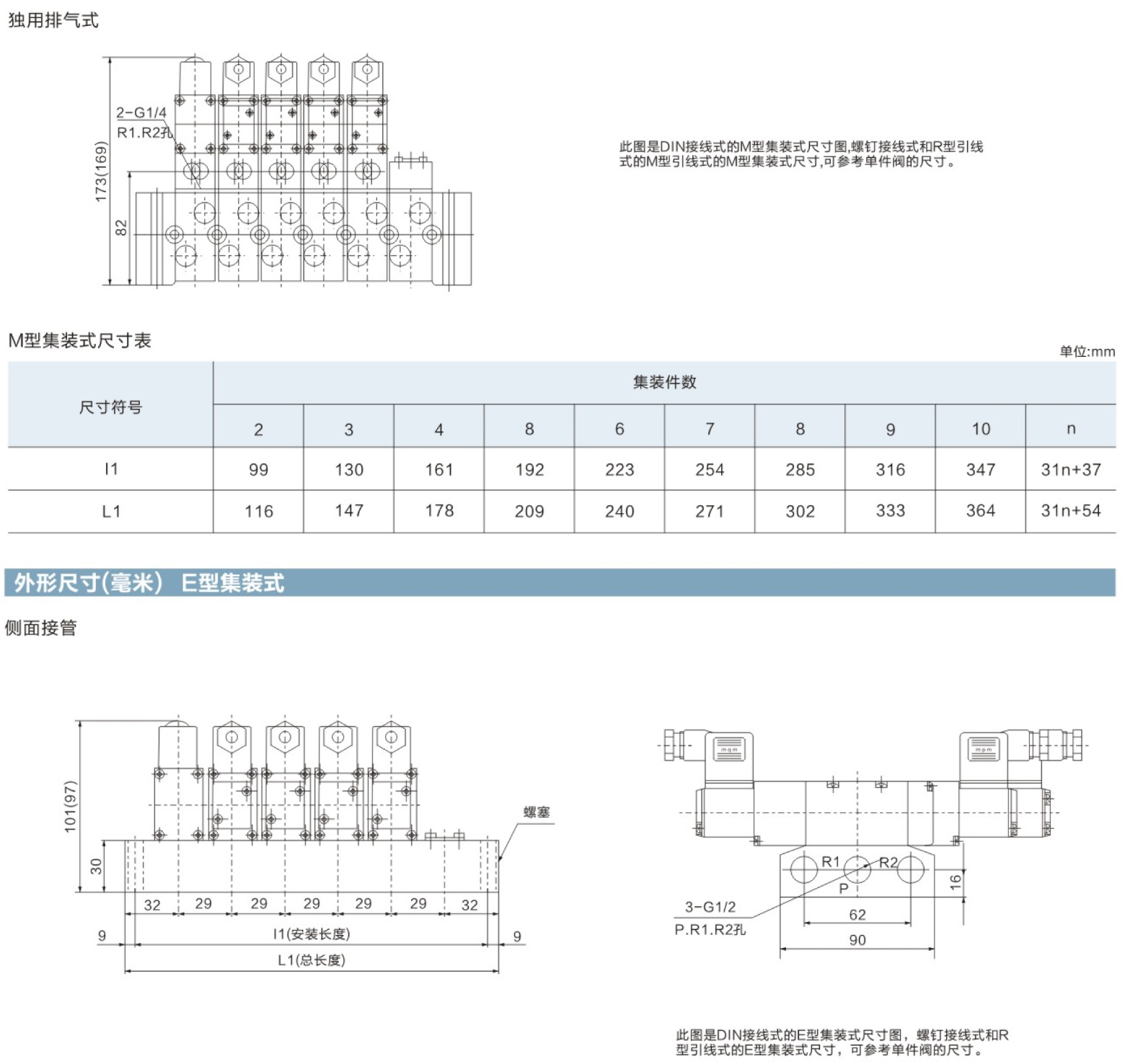

4. The single valve connection method is pipe connection type. There are two assembly methods: M type and E type.
5. Equipped with self-locking manual operation knob.
6. There are three wiring forms: DIN type, screw type and R type, which can be installed with protection circuits and indicator lights.
